Kennametal 1785284 Replaceable-tip Drill Ksem Series

Product Description

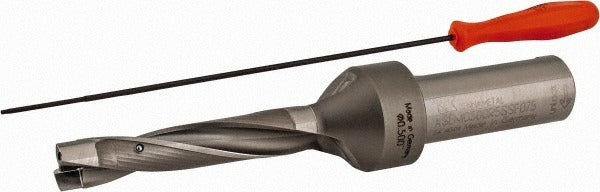

The KENNAMETAL 1785284 is a replaceable-tip drill body in the KSEM series, designed for high-productivity hole-making in metal cutting applications. It accepts KSEM0500 style inserts in an Insert Seat Size C configuration, allowing tip replacement without removing the body from the machine. The drill covers a diameter range of 12.7 to 13.2 mm (0.5000 to 0.5197 inches) and reaches a maximum drilling depth of 63.5 mm (2.5 inches), representing a 5xD depth-to-diameter ratio. Through-coolant delivery is supported via 1/8-27 NPT ports at both the shank end and body side, helping to control heat and clear chips at depth. The shank is a 19.05 mm Weldon Flat design, providing positive rotational drive in compatible toolholders. Overall length is 150.8 mm (5.937 inches). This body is installed and maintained by CNC machinists and toolroom technicians.

This drill body is suited for medium-diameter hole-making in steel, stainless, cast iron, and similar workpiece materials on CNC machining centers and turning centers equipped with live tooling. The 5xD depth ratio makes it appropriate for through-holes and blind holes in structural and component machining. The replaceable-tip design reduces tooling cost per hole by allowing insert indexing without disturbing the qualified shank setup. The Weldon Flat shank interfaces with standard ER or Weldon-style holders in the 19.05 mm size class. Through-coolant capability supports higher feed rates and extended insert life in interrupted or continuous cuts.

Key Features

• Replaceable KSEM0500 insert tip - body is reusable, reducing per-hole tooling cost
• Diameter range: 12.7 to 13.2 mm (0.500 to 0.5197 inches) with Seat Size C inserts
• 5xD depth-to-diameter ratio - maximum drill depth 63.5 mm (2.5 inches)
• Through-coolant design with 1/8-27 NPT ports at shank end and body side
• 19.05 mm Weldon Flat shank for positive rotational engagement
• Overall length 150.8 mm (5.937 inches); flute length 75.87 mm (2.987 inches)

Compatibility

Designed for use with KSEM0500 series replaceable drill tip inserts, Insert Seat Size C. The body is part of the KENNAMETAL KSEM series platform. Compatible with toolholders accepting a 19.05 mm Weldon Flat shank.

Installation Notes

Installation and setup should be performed by a qualified CNC machinist or toolroom technician. Confirm the machine spindle and toolholder are fully stopped and the control is in a safe state before mounting or removing the drill body. Torque the Weldon Flat set screw to the toolholder manufacturer's specification - do not rely on feel alone. When seating or replacing the KSEM insert tip, follow KENNAMETAL torque and seating procedures for the KSEM platform to ensure proper tip engagement before cutting.
