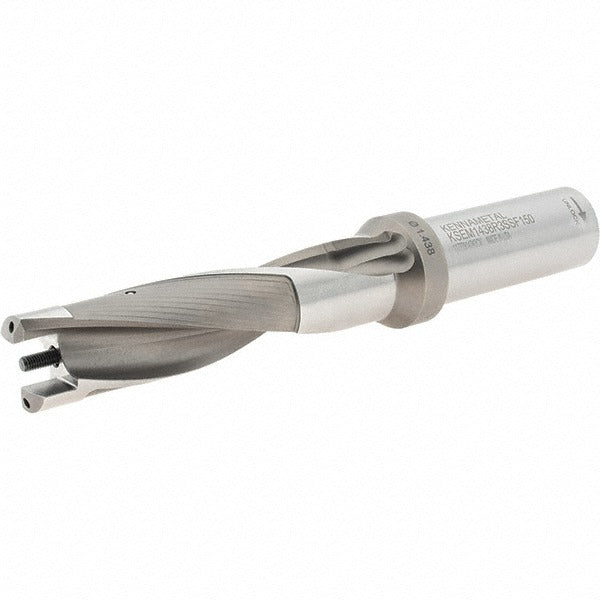

Kennametal 1616110 Replaceable Tip Drill 36.53-37.51mm

Product Description

The KENNAMETAL 1616110 is a replaceable-tip drill body from the KSEM series, designed for high-production hole-making in metal cutting applications. It accepts KSEM1438 inserts at seat size 10, allowing tip changes without removing the body from the spindle. The drill covers a diameter range of 36.53 to 37.51 mm (1.4382 to 1.4768 inches) and reaches a maximum drill depth of 111 mm (4.37 inches) at a 3xD depth-to-diameter ratio. Overall length is 285.75 mm (11.25 inches). Through-coolant delivery is standard, supporting extended tool life and chip evacuation in deep-hole operations. Licensed machinists and CNC operators in production machining environments are the primary installers.

This drill body is suited for production machining centers running deep-hole operations in ferrous and non-ferrous materials where repeatable hole quality and fast insert indexing are required. The Weldon flat shank with a 38.1 mm (1.50 inch) diameter provides positive drive and secure seating in compatible tool holders. Coolant is delivered through the body via NPT-threaded ports: a 1/4-18 shank-end port and a 1/8-27 body-side port, giving shops flexibility in coolant routing configuration. The 171.96 mm (6.77 inch) flute length supports chip clearance throughout the full depth range.

Key Features

• Diameter range: 36.53 to 37.51 mm (1.4382 to 1.4768 inches) using seat size 10 KSEM1438 inserts
• 3xD depth-to-diameter ratio with a maximum drill depth of 111 mm (4.37 inches)
• Through-coolant design with NPT-threaded body-side (1/8-27) and shank-end (1/4-18) coolant ports
• Weldon flat shank, 38.1 mm diameter, for positive rotational drive in standard tool holders
• Flute length of 171.96 mm (6.77 inches) promotes efficient chip evacuation
• Replaceable-tip system allows insert changes without body removal, reducing downtime

Compatibility

Compatible with KSEM1438 inserts at insert seat size 10. Part of the KSEM series platform.

Installation Notes

Installation and tool changes should be performed by qualified machinists with the spindle fully stopped and machine locked out per shop safety procedures. Confirm tool holder compatibility with the 38.1 mm Weldon flat shank before mounting. Coolant port connections should be verified for proper thread engagement using NPT-rated fittings before operation. Follow the tooling manufacturer's recommended insert clamping procedure when indexing or replacing KSEM1438 tips.
