Kennametal 1560600 CCGT21505HP KC5410 Carbide Turning Insert

Product Description

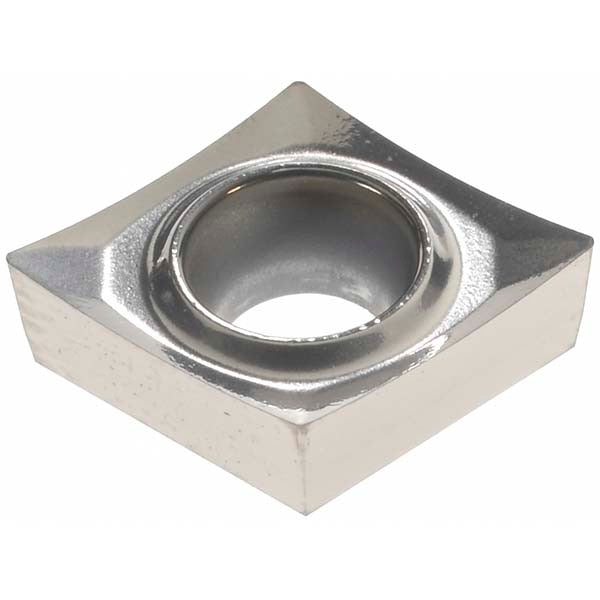

The KENNAMETAL 1560600 is a solid carbide turning insert with ANSI designation CCGT21505HP and ISO designation CCGT060202, coated with TiB2 via PVD process under the KC5410 grade. It features an 80-degree diamond (rhombic) shape, a positive rake angle of 15 degrees, and a 7-degree relief angle with positive side clearance. The 0.0079-inch corner radius and honed cutting edge make it well-suited for finishing operations on aluminum and non-ferrous metals. It is a neutral-hand, screw-on style insert with a 0.25-inch inscribed circle and delivers high wear resistance on non-ferrous workpiece materials.

This insert is designed for turning, facing, and boring applications in aluminum and non-ferrous metal workpieces where a clean, consistent finish is required. The HP chip breaker geometry and TiB2 coating optimize chip control and surface finish during light finishing cuts, with a maximum depth of cut of 0.0492 inches (1.25 mm). It is used in CNC lathes and turning centers by machinists and tooling professionals working primarily in the N material group. Each package contains one insert; the minimum order quantity is 5 inserts.

Key Features

• TiB2 PVD coating on solid carbide substrate for high wear resistance on non-ferrous metals
• 80-degree diamond insert shape with positive rake and positive side clearance for low cutting forces
• HP chip breaker geometry optimized for finishing operations
• Honed cutting edge for improved edge stability on aluminum and non-ferrous alloys
• Screw-on insert holding method with 2 usable cutting edges
• Conforms to ANSI and ISO standards (CCGT21505 and CCGT060202)

Compatibility

Designed for use in screw-on style turning toolholders that accept CCGT21505 inserts per ANSI and ISO standards. Suitable for multi-use applications including turning, facing, and boring on non-ferrous metal workpieces under material grade designations C3 and C4.

Installation Notes

Installation is performed by machinist or tooling technicians on CNC or manual lathes using the appropriate torx or hex key for the insert screw. Ensure the toolholder pocket and seating surface are clean and free of chips before seating the insert. Power down and lock out the machine before indexing or replacing inserts. Do not exceed the published maximum depth of cut for this insert geometry to avoid edge chipping.
