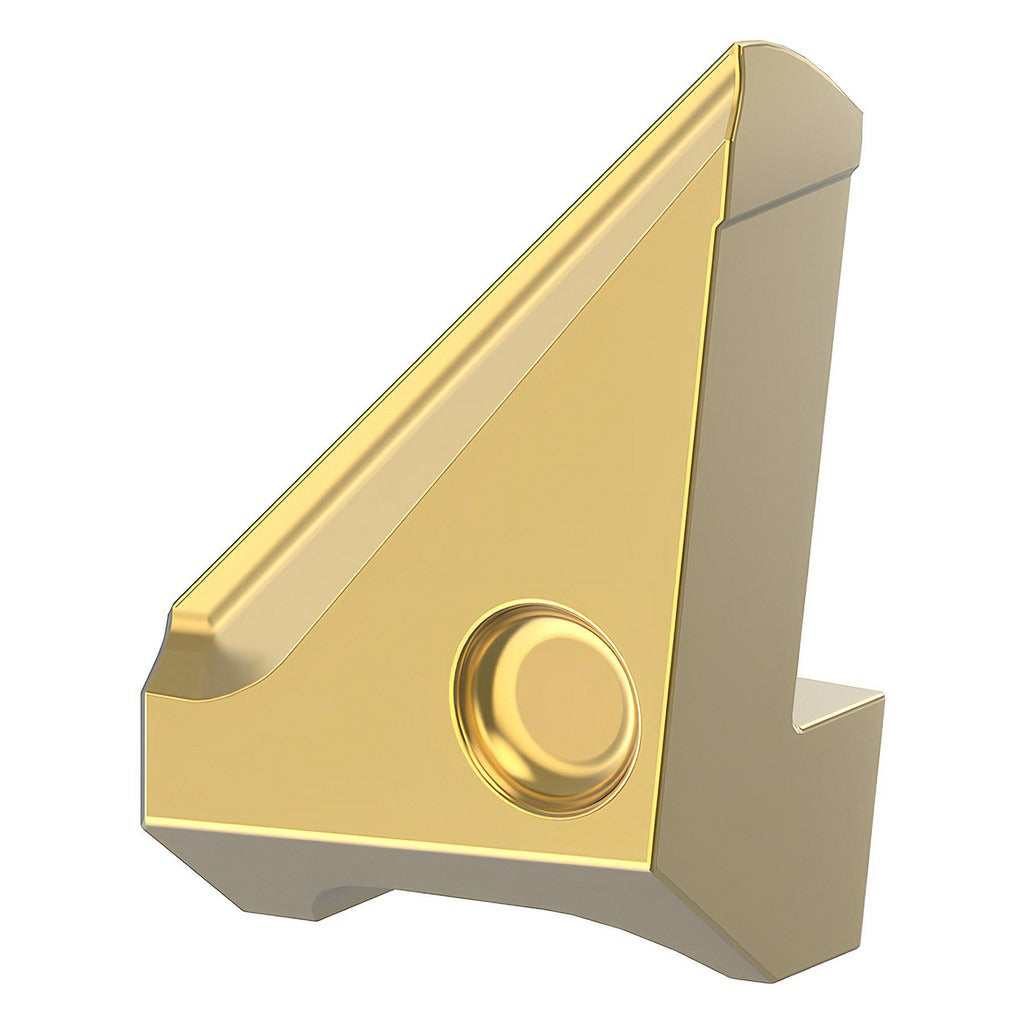

Kennametal 1316526 Milling Insert KC7215 Solid Carbide

Product Description

The KENNAMETAL 1316526 is a solid carbide milling insert with a TiAlN PVD coating, designed for high-performance metal cutting in milling applications. It carries the ANSI/ISO designation 3.42807R001 and is manufactured to the KC7215 grade. The insert measures 0.4724 inches wide and 0.1575 inches thick, with an inscribed circle of 0.3750 inches. The TiAlN coating is applied via PVD process, providing thermal resistance and wear protection suited to demanding cutting conditions. This is a single-sided, right-hand insert held in place by screw-mount clamping. It is installed by machinists and tooling technicians working with CNC and manual milling equipment.

This insert is designed for use in the SEFAS cutter series. It is rated for a broad range of workpiece materials including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The KC7215 grade targets applications where tool life and edge stability are critical, making it well suited to both production and job-shop milling environments. Material grade classifications C3, C4, and C7 apply. The insert conforms to ANSI and ISO standards under designation 3.42807R001.

Key Features

• Solid carbide substrate with TiAlN PVD coating for wear and heat resistance
• KC7215 manufacturer grade rated for steel, stainless steel, superalloys, titanium, and hard materials
• Right-hand cutting orientation, single-sided configuration
• Screw-mount insert holding method for secure, repeatable clamping
• Conforms to ANSI and ISO standards under designation 3.42807R001
• Compatible with SEFAS cutter series toolholders

Compatibility

Designed for use with the SEFAS cutter series. Suitable for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. Conforms to ANSI and ISO insert standard 3.42807R001.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Ensure the milling cutter body and insert pocket are clean and free of chips or debris before seating the insert. Use the appropriate torx or hex key to torque the clamping screw per the cutter body manufacturer specification. Always power down and lock out the machine spindle before changing inserts.
