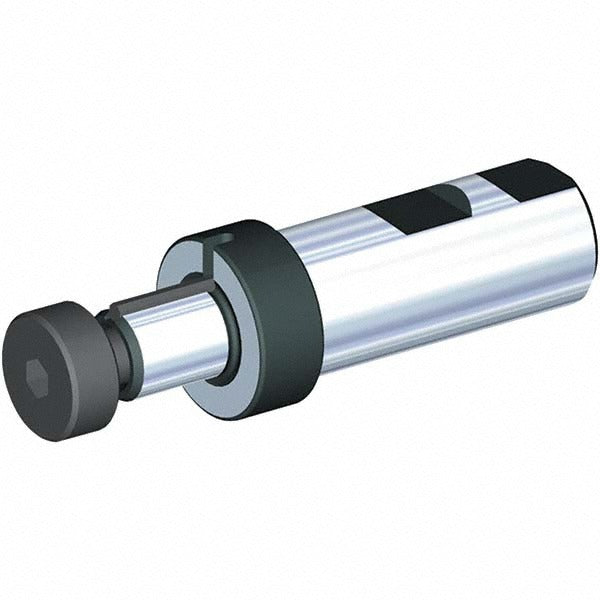

Kennametal 1288264 Slotting Cutter Adapter Straight Shank

Product Description

The KENNAMETAL 1288264 is a straight-shank slotting cutter adapter designed to mount slotting cutters on milling machines and machining centers. It accepts cutters with a 1-inch hole diameter and features a 1.25-inch straight shank for secure tool holding. The adapter measures 3.968 inches in overall length and provides a 0.75-inch projection. Weighing approximately 1.7 pounds, this adapter is built for precision slotting operations in production and job-shop environments. It is installed by machinists and CNC setup technicians working with horizontal or vertical milling setups requiring slotting cutter assemblies.

This adapter is suited for slotting operations in metalworking applications where a straight-shank connection is required. It is compatible with slotting cutters that have a 1-inch arbor hole diameter. The included hardware — a 0.156-inch spacer, drive key, and lock screw — allows for complete assembly without sourcing additional components. Typical applications include keyway cutting, groove milling, and slot machining in both ferrous and non-ferrous materials across general machining and toolroom environments.

Key Features

• Straight shank design with 1.25-inch shank diameter for positive machine spindle engagement
• 1-inch arbor diameter accommodates standard slotting cutters with 1-inch bore
• 3.968-inch overall length with 0.75-inch cutter projection
• Includes 0.156-inch spacer, drive key, and lock screw for complete ready-to-use assembly
• Compact and precise construction suited for production slotting operations

Compatibility

Designed as an OEM-style slotting cutter adapter for use with slotting cutters having a 1-inch cutter hole diameter on straight-shank milling arbor setups.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before mounting or removing the adapter. Secure the lock screw and drive key fully before operating, and verify cutter seating and runout with an indicator before initiating a cut. Follow the machine tool manufacturer guidelines for straight-shank tool holding torque and retention.
