Kennametal 1163010 Turning Insert CPGM32.52 K313 Carbide

Product Description

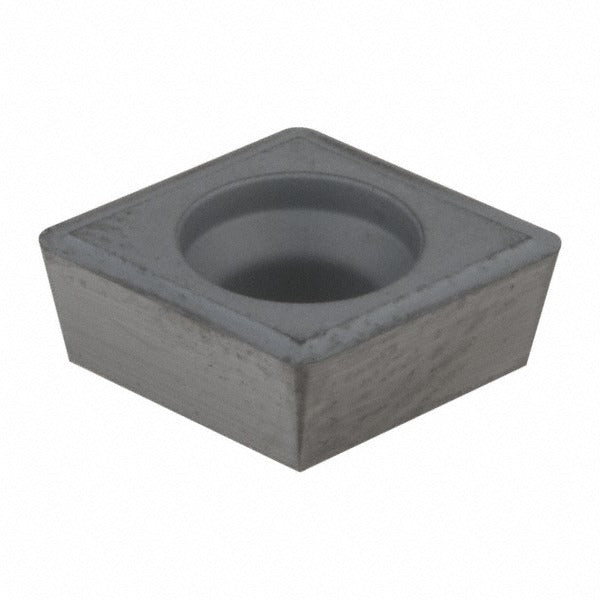

The KENNAMETAL 1163010 is a solid carbide turning insert in the CPGM32.52 geometry, designed for precision metal removal in CNC and manual turning operations. It carries the K313 uncoated carbide grade and features an 80-degree diamond (rhombic) insert shape with a neutral hand orientation. The inscribed circle measures 3/8 inches, the corner radius is 1/32 inches, and the insert thickness is 5/32 inches. With 2 cutting edges and a screw-on holding method, it delivers consistent performance across turning, facing, and boring applications. The positive rake and honed cutting edge style reduce cutting forces and support clean chip formation at moderate depths of cut.

This insert is suited for medium machining operations on non-ferrous metals, stainless steel, cast iron, and superalloys and titanium. Its K313 grade provides high wear resistance combined with moderate toughness, making it appropriate for materials demanding controlled tool wear and reliable surface finish. Typical installations include production turning on lathes and turning centers where screw-on insert toolholders accepting CPGM-style inserts are in use. It is manufactured to ANSI and ISO standards, with ANSI code CPGM3252 and ISO code CPGM09T308, ensuring dimensional interchangeability across compatible tooling systems.

Key Features

• K313 uncoated solid carbide grade with high wear resistance for non-ferrous, stainless steel, cast iron, and superalloy machining
• 80-degree diamond (rhombic) insert shape with positive rake and 11-degree relief angle for reduced cutting forces
• Honed cutting edge style for controlled chip formation and improved edge stability
• Neutral hand orientation supports use in a wide range of toolholder configurations
• Screw-on holding method provides secure clamping and accurate insert indexing
• 2 usable cutting edges per insert; suitable for turning, facing, and boring operations
• Conforms to ANSI and ISO dimensional standards for broad toolholder compatibility

Compatibility

Designed for use in screw-on CPGM-style toolholders accepting a 3/8-inch inscribed circle insert with ANSI size code 3252 and ISO size code 09T308. Verify toolholder pocket geometry and screw size before installation.
