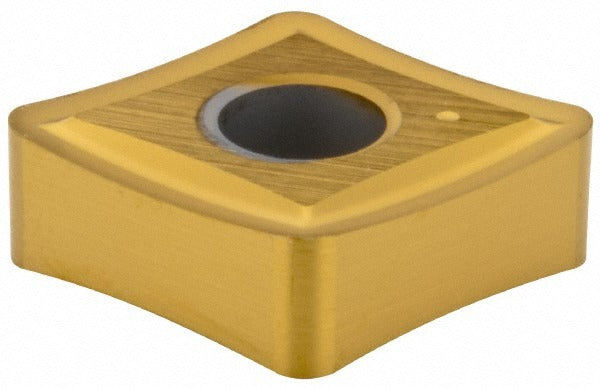

Kennametal 1160901 Turning Insert CNGP434 KC730 Carbide

Product Description

The KENNAMETAL 1160901 is a solid carbide turning insert in the CNGP434 geometry, coated with TiN via a PVD process and assigned the KC730 manufacturer grade. It carries an 80-degree diamond (rhombic) shape with a 0.5-inch inscribed circle, a 3/16-inch thickness, and a 1/16-inch corner radius. The negative rake and neutral hand make it well-suited for high-wear and moderate-toughness applications. Part of the KENLOC series, this insert is intended for professional machinists running turning, facing, and boring operations on CNC or manual lathes.

This insert targets medium machining conditions on steel, stainless steel, cast iron, and superalloys including titanium. The KC730 grade is engineered for high wear resistance to moderate toughness across P, M, and K workpiece material classifications. With four available cutting edges and a honed cutting edge style, it is a practical multi-use option for production shops running varied workpiece materials. The KENLOC clamp-and-pin holding method provides secure seating in compatible toolholders. Maximum depth of cut is 0.0492 inch (1.25 mm).

Key Features

• KC730 grade with PVD TiN coating for high wear resistance on steel and stainless steel
• 80-degree diamond (rhombic) insert shape with negative rake and neutral hand
• Four usable cutting edges per insert for extended tool life
• Honed cutting edge style suited for medium machining chip-breaker operation
• Compatible with KENLOC clamp-and-pin toolholder systems
• Meets ANSI and ISO standards; ANSI code CNGP434, ISO code CNGP120416

Compatibility

Designed for use in KENLOC-series toolholders that accept CNGP434 geometry inserts with clamp-and-pin holding. Suitable for turning, facing, and boring of steel (P), stainless steel (M), cast iron (K), superalloys, and titanium (S) workpiece materials.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct clamp screw torque procedure specified by the toolholder manufacturer for KENLOC-style clamp-and-pin seats. Inspect the insert pocket and seating surfaces for debris or damage before seating a new insert.
