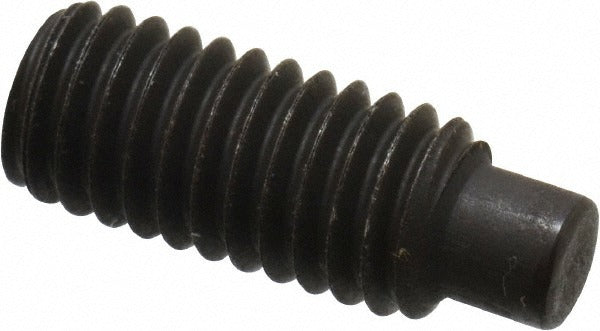

Kennametal 1136633 Set Screw Indexable Milling Turning

Product Description

The KENNAMETAL 1136633 is a dog-point set screw designed to secure indexable inserts in milling and turning toolholders. This small-format fastener provides the clamping force needed to hold carbide or ceramic inserts firmly in their pockets during cutting operations. Weighing 0.0049 pounds, it is a precision component where consistent torque and thread integrity are critical to insert stability and surface finish quality. Machinists and toolroom technicians working with indexable tooling systems rely on correctly specified set screws to maintain insert positioning under high cutting loads.

This set screw is intended for use in indexable milling and turning applications. It fits toolholders that use a dog-point clamping screw to locate and retain the insert within the pocket. Typical installations include turning centers, CNC lathes, and milling machines running indexable insert tooling where insert replacement is frequent and screw condition directly affects cutting performance and repeatability.

Key Features

• Dog-point tip design for positive insert pocket engagement
• Compatible with both indexable milling and turning toolholder types
• Lightweight at 0.0049 pounds, precision-manufactured for consistent fit
• OEM KENNAMETAL specification ensures correct thread form and point geometry

Compatibility

Designed as an OEM-style replacement set screw for KENNAMETAL indexable milling and turning toolholders that require a dog-point clamping screw.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with indexable tooling systems. Disengage the machine and ensure the spindle is fully stopped before replacing any clamping hardware. Use the correct hex key or Torx driver specified for the toolholder to avoid stripping the screw head. Inspect the screw threads and insert pocket for wear or damage before reinstalling.
