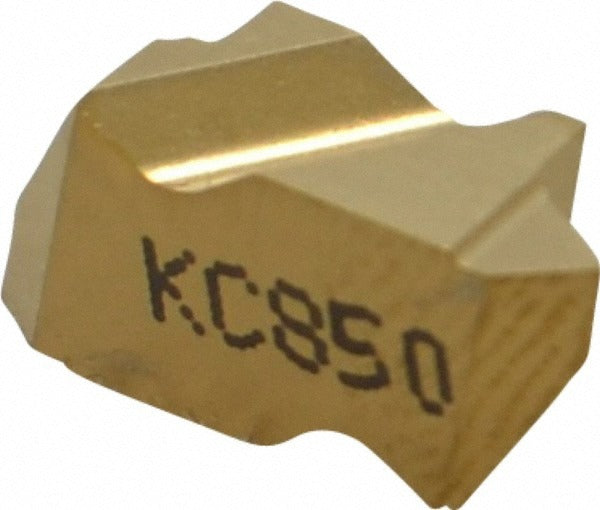

Kennametal 1114860 Threading Insert NTK2L KC850 Carbide

Product Description

The KENNAMETAL 1114860 is a left-hand carbide threading insert in the Top Notch series, designed for precision thread turning on CNC lathes and turning centers. It carries a CVD-applied TiC/TiCN/TiN multilayer finish in manufacturer grade KC850, which is suited for cutting a wide range of steels and cast irons at material grades C5 and C6. The insert produces a partial profile 60-degree thread form and handles both internal and external threading applications. External pitch range is 0.60 to 1.75 mm (14 to 44 TPI) and internal pitch range is 1.00 to 2.00 mm (12 to 24 TPI). Machinists and CNC turning specialists are the primary installers of this insert.

This insert fits Top Notch series toolholders configured for left-hand threading. It is applicable in both internal and external thread-turning operations on ferrous workpieces in production and job-shop environments. The 60-degree included angle makes it compatible with Unified, metric, and other standard 60-degree thread forms when used with the appropriate partial-profile geometry. It is sold individually per package with a minimum order quantity of 5 pieces.

Key Features

• CVD multilayer TiC/TiCN/TiN coating in grade KC850 for wear resistance on steels and cast irons
• Partial profile 60-degree thread form covers both internal and external applications
• Left-hand insert orientation for Top Notch series tooling systems
• External pitch range: 0.60 to 1.75 mm (14 to 44 TPI)
• Internal pitch range: 1.00 to 2.00 mm (12 to 24 TPI)
• Corner radius of 0.08 mm (0.0031 inches) for controlled thread root geometry

Compatibility

Designed as an OEM-style replacement threading insert for Top Notch series left-hand toolholders accepting Insert Size 2 NTK-style inserts for 60-degree partial profile thread turning.

Installation Notes

Threading inserts are seated and secured by a licensed machinist or CNC turning technician following machine tool manufacturer torque and clamping procedures. Power down and lock out the machine spindle before changing inserts. Inspect the toolholder pocket for chips or damage before seating the insert. Do not force or tap the insert into the pocket; incorrect seating will damage the cutting edge and the toolholder.
