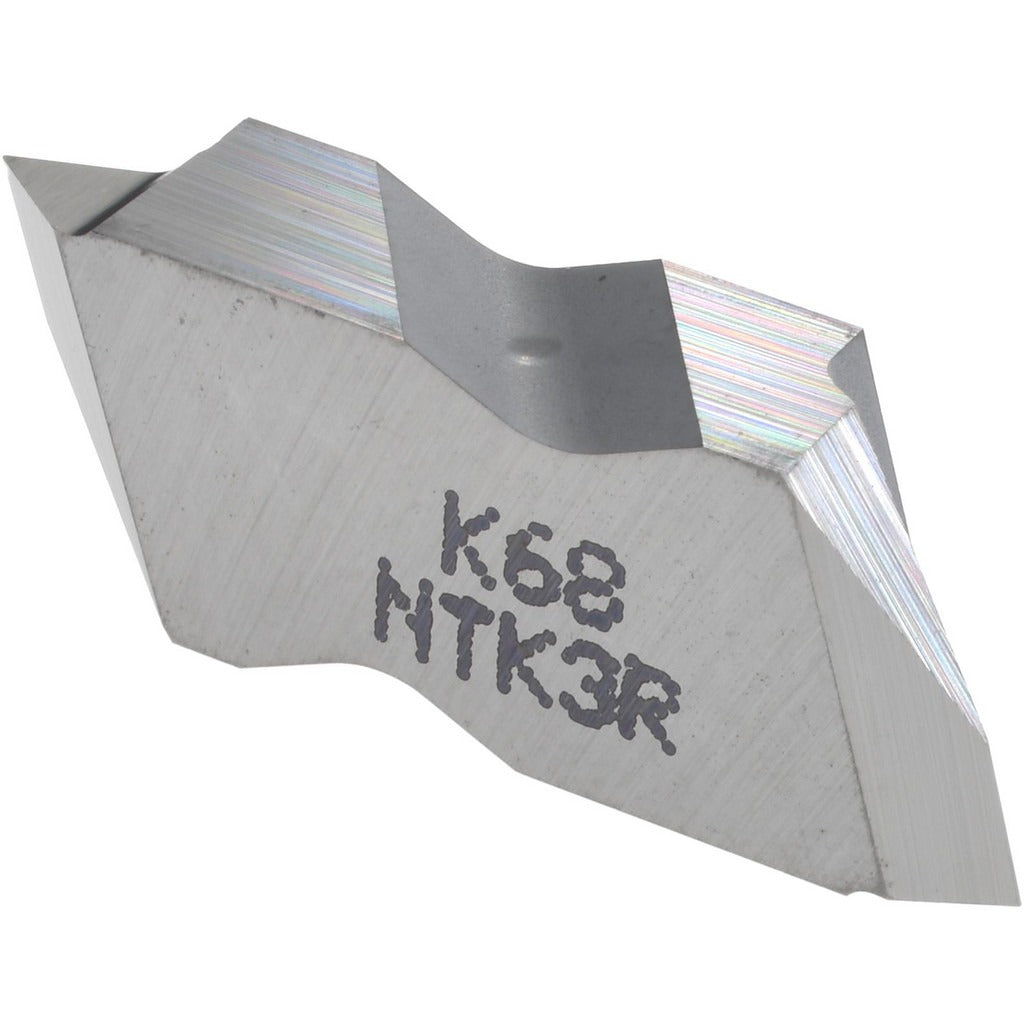

Kennametal 1114625 Threading Insert K68 Carbide Top Notch

Product Description

The KENNAMETAL 1114625 is a carbide threading insert designed for precision thread cutting on both internal and external workpieces. Manufactured in the K68 grade with an uncoated bright finish, this insert runs in the Top Notch series and follows a partial profile 60-degree thread standard. It handles external pitches from 0.60 to 2.50 mm (10 to 44 TPI) and internal pitches from 1.00 to 2.50 mm (9 to 24 TPI), making it a versatile single insert for a range of thread forms. Right-hand cutting orientation and a 0.08 mm corner radius support consistent thread geometry across production and maintenance turning operations.

This insert is suited for use on CNC lathes and manual turning centers in machine shops, production facilities, and maintenance environments. It is a fit for operators threading ferrous and non-ferrous materials where a C3 material grade carbide is appropriate. The NTK3R insert style seats into compatible Top Notch toolholders. Machinists and tool-and-die professionals working with metric and unified thread forms will find this insert covers a broad pitch range from a single pocket.

Key Features

• Partial profile 60-degree thread standard covers both inch and metric thread forms
• External pitch range: 0.60 to 2.50 mm (10 to 44 TPI)
• Internal pitch range: 1.00 to 2.50 mm (9 to 24 TPI)
• K68 carbide grade, uncoated bright finish for consistent edge performance
• Right-hand cutting orientation, insert style NTK3R
• Top Notch series insert for use with compatible Top Notch toolholding systems

Compatibility

Designed for use with Top Notch series toolholders that accept NTK3R style inserts. Consult KENNAMETAL toolholder documentation to confirm pocket and clamping compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist with the machine fully powered down and the spindle locked before seating or replacing the insert. Use the correct torque wrench and clamp screws specified for the Top Notch toolholder to avoid insert movement or breakage during cutting. Inspect the pocket and clamping mechanism for wear or debris before seating the new insert. Follow applicable shop safety procedures and machine manufacturer guidelines when changing cutting inserts under any toolholder system.
