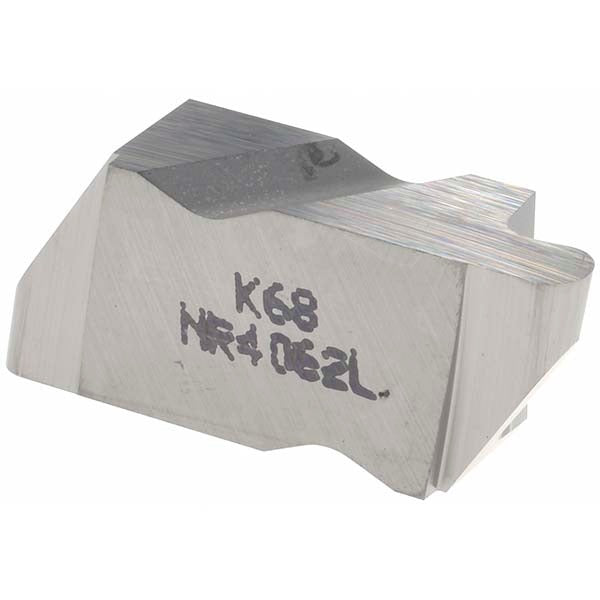

Kennametal 1113535 NR4062 K68 Grooving Insert Left Hand

Product Description

The KENNAMETAL 1113535 is a solid carbide grooving insert from the Top Notch series, designed for external grooving and parting operations on CNC lathes and turning centers. It carries the K68 uncoated carbide grade with a neutral rake geometry and full radius profile. The cutting width measures 0.125 inches (3.18 mm), and the maximum depth of cut reaches 0.150 inches (3.81 mm). This is a left-hand insert, meaning it is configured for right-to-left feed direction. Machinists and CNC operators working with cast iron and non-ferrous materials will find the K68 grade well suited to their applications.

This insert is intended for use in Top Notch series toolholders that accept a size 4 insert seat. It is suited for precision grooving, undercutting, and parting in production turning environments, including both job shops and high-volume manufacturing. The full corner radius of 0.063 inches (1.59 mm) provides a smooth groove floor finish. The metric insert size designation is 4062, and the material grade classification is C3, which corresponds to applications involving cast iron and hardened non-ferrous materials.

Key Features

• Solid carbide construction, uncoated (bright finish) for consistent performance on cast iron and abrasive materials
• Left-hand cutting orientation for right-to-left feed direction on CNC turning equipment
• Full radius profile with 0.063 inch (1.59 mm) corner radius for smooth groove floor finish
• Cutting width of 0.125 inches (3.18 mm) with maximum depth of cut of 0.150 inches (3.81 mm)
• Neutral rake geometry reduces cutting forces and supports stable chip formation
• Fits Top Notch series size 4 insert seat toolholders

Compatibility

Designed for use with Top Notch series toolholders that accept a size 4 insert seat. Verify toolholder insert seat size and hand orientation before installation.

Installation Notes

Insert installation should be performed by a qualified machinist or CNC technician with the machine powered down and locked out per applicable safety procedures. Ensure the insert pocket and seating surface are clean and free of chips before seating the insert. Use the appropriate torque wrench and clamping hardware specified for the Top Notch toolholder system. Inspect the insert for seating contact and secure clamping before resuming machine operation.
