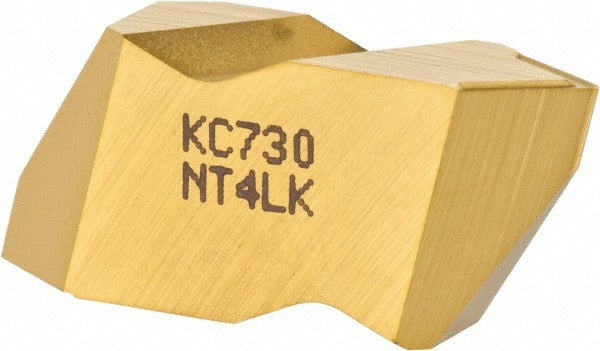

Kennametal 1112898 Threading Insert NT4LK KC730 Carbide

Product Description

The KENNAMETAL 1112898 is a carbide threading insert in the NT4LK style, designed for both internal and external thread cutting operations. Running the KC730 manufacturer grade with a PVD-applied Titanium Nitride finish, this insert handles partial profile 60-degree thread forms on a wide pitch range: 1.25 to 6.25 mm (4 to 20 TPI) external and 2.00 to 6.25 mm (4 to 12 TPI) internal. The left-hand orientation and K chipbreaker geometry make it a purpose-built tool for left-hand threading applications in turning centers and CNC lathes. It belongs to the Top Notch series, a standard indexable threading platform used across production and job-shop environments.

This insert is suited for threading operations on ferrous and non-ferrous materials falling within material grades C2, C3, and C4. Typical applications include cutting unified and metric left-hand threads on shafts, couplings, fittings, and threaded components where right-hand thread engagement is not acceptable. The partial profile geometry allows a single insert to cover a range of pitches without requiring a dedicated insert per thread size, which reduces tooling inventory on mixed-production jobs. Machinists and CNC operators in industrial manufacturing, oilfield, and general machining environments are the primary users.

Key Features

• KC730 carbide grade with PVD Titanium Nitride coating for extended wear resistance
• Partial profile 60-degree included angle covers both unified and metric thread forms
• Left-hand insert orientation for left-hand thread cutting
• K chipbreaker geometry for controlled chip evacuation during threading passes
• External pitch range: 1.25 to 6.25 mm (4 to 20 TPI); internal pitch range: 2.00 to 6.25 mm (4 to 12 TPI)
• Top Notch series platform for compatibility with standard NT-style toolholders

Compatibility

Designed for use with Top Notch series NT-style threading toolholders that accept size 4 inserts. Compatible with internal and external threading applications across material grades C2, C3, and C4.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and de-energize the machine spindle before indexing or replacing the insert. Seat the insert fully in the toolholder pocket and verify clamping torque per the toolholder manufacturer specification before running. Do not exceed the recommended depth-of-cut or feed rate for the insert grade, as threading inserts are not designed for radial turning loads.
