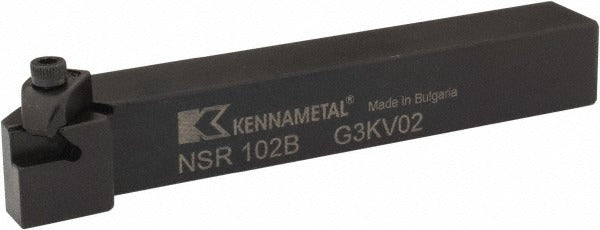

Kennametal 1097609 Indexable Threading Toolholder

Product Description

The KENNAMETAL 1097609 is an external, right-hand indexable threading toolholder from the Top Notch series, designed for threading and grooving operations on CNC lathes and turning centers. The toolholder accepts N.2R inserts secured by a clamp-style insert holding method. The square shank measures 0.625 x 0.625 inches (5/8 inch) with an overall length of 4.5 inches. A head length of 0.75 inches and a maximum depth of cut of 0.138 inches make this holder well suited for precision external thread-cutting applications. It is installed and operated by machinists and CNC turning specialists working in production and job shop environments.

This toolholder is used in external threading and grooving applications on turning machines where consistent insert indexing and rigid clamping are required. The Top Notch series is a recognized system for indexable grooving and threading toolholders. The MSC and manufacturer cross-reference number for this holder is NSR/L102B. It is appropriate for both production runs and short-run precision threading where repeatability and secure insert retention are priorities. Coolant-through capability is not included on this toolholder.

Key Features

• External, right-hand orientation for standard OD threading and grooving setups
• Clamp-style insert holding method for secure N.2R insert retention
• 0.625 x 0.625 inch square shank fits standard toolholder blocks and turrets
• 4.5 inch overall length provides adequate reach on most turning center turrets
• Maximum depth of cut of 0.138 inches suits precision threading profiles
• Multi-use designation supports both threading and grooving operations

Compatibility

Designed to accept N.2R series inserts using the Top Notch clamp-style insert holding system. Cross-reference manufacturer number NSR/L102B applies to this toolholder within the Top Notch series.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The machine spindle must be stopped and all motion halted before mounting or adjusting the toolholder in the turret. Verify shank seating and clamp torque according to the machine tool manufacturer's specifications before initiating a cutting cycle. Confirm insert orientation and index position before running any threading pass.
