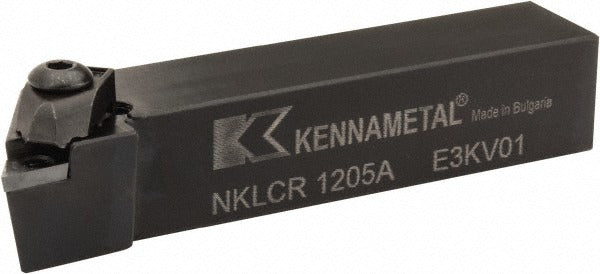

Kennametal 1097508 Indexable Profiling Toolholder External

Product Description

The KENNAMETAL 1097508 is an external indexable profiling toolholder designed for turning and profiling operations on CNC lathes and turning centers. Built to the Top Notch series standard, this right-hand toolholder features a neutral rake geometry and a clamp-style insert holding method. The steel shank measures 0.75 inches in height and 0.75 inches in width, with an overall length of 4 inches. It accepts NP.. series inserts with a 5/8-inch inscribed circle, making it a direct-fit choice for shops already running Top Notch tooling systems. Coolant-through capability is not included on this holder.

This toolholder is suited for external turning and contour profiling in general machining environments, including job shops and production turning cells. The NKLC toolholder style with a -5 degree lead angle supports profiling passes where controlled cutting geometry is required. It is appropriate for use on short-run and high-volume applications where quick insert indexing and repeatable tool positioning are priorities. Compatible insert size code NP.. 51R is the designated insert family for this holder.

Key Features

• External profiling configuration with -5 degree lead angle for controlled contour cutting
• Right-hand, neutral rake geometry suits a wide range of turning applications
• Clamp-style insert retention provides secure insert seating during interrupted and continuous cuts
• 0.75 x 0.75 inch steel shank fits standard turning center tool blocks and gang plates
• Top Notch series design allows fast insert indexing without removing the holder from the machine
• Head length of 0.88 inches and back-of-bar to cutting edge distance of 1.0 inch supports precise tool reach setup

Compatibility

Designed for use with NP.. 51R series inserts. Compatible insert inscribed circle is 5/8 inch (0.6250 inches). Cross-reference manufacturer number NKLCR/L1205A applies to this holder within the Top Notch series.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before mounting or removing the toolholder from the turret or tool block. Verify shank seating and clamp torque according to the machine tool manufacturer specifications before running the spindle. Inspect the insert pocket and clamp hardware for wear or debris each time the insert is indexed.
