Kennametal 1097264 Threading Toolholder 1.25 Inch Shank

Product Description

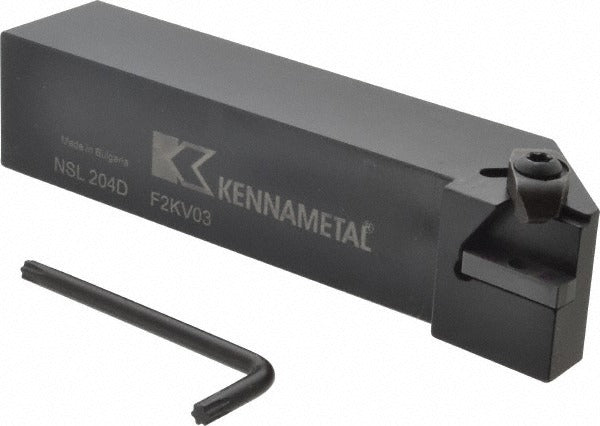

The KENNAMETAL 1097264 is an external, left-hand indexable threading toolholder from the Top Notch series. It accepts N.4L inserts held in place by a clamp-style insert holding method and is rated for both grooving and threading operations. The square shank measures 1.25 x 1.25 inches with an overall length of 6 inches, giving machinists a rigid, predictable setup on CNC lathes and manual turning centers. Maximum depth of cut is 0.294 inches. This toolholder is installed by machinists and toolroom technicians working in production turning or job-shop environments.

The 1097264 is suited for external threading and grooving applications on turning equipment where a left-hand toolholder is required. The Top Notch series is designed for consistent insert indexing, making it a practical choice for high-volume threading operations as well as single-part setups. The multi-use designation means it handles both threading and grooving without a change in toolholder, reducing setup time between operations.

Key Features

• External, left-hand cutting geometry for threading and grooving operations
• Top Notch series with clamp-style insert retention for repeatable insert positioning
• Compatible with N.4L indexable inserts
• 1.25 x 1.25 inch square shank for rigid setup in standard tool blocks
• Maximum depth of cut of 0.294 inches
• Multi-use design supports both grooving and threading without toolholder change

Compatibility

Designed for use with N.4L series Top Notch indexable inserts. Fits standard 1.25 x 1.25 inch square shank tool blocks and turrets on CNC and manual turning centers.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the turning center before mounting or removing the toolholder. Secure the shank firmly in the tool block or turret station according to the machine tool manufacturer torque guidelines. Verify insert seating and clamp engagement before returning the machine to service.
