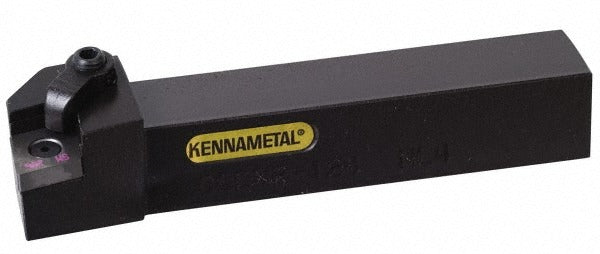

Kennametal 1096902 Indexable Turning Toolholder CCLPR084V

Product Description

The KENNAMETAL 1096902 is a CCLPR084V-style indexable turning toolholder designed for use on CNC lathes and manual turning centers. It uses a clamp-style insert holding method with a positive rake geometry, accepting CP.. 422 series inserts. The toolholder features a 0.5 inch square shank and an overall length of 3.5 inches, making it suited for light to medium turning operations where precise insert positioning and secure clamping are required. Constructed from steel, this right-hand holder belongs to the Kendex series and is intended for installation by machinists and tool-and-die professionals working in production or job-shop turning environments.

This toolholder is configured for right-hand cutting operations and fits standard OD turning setups on lathes with toolposts or turrets that accept a 0.5 inch square shank. The Kendex series CCLP style places the insert at a specific lead angle appropriate for profiling and facing operations. The back-of-bar to cutting edge dimension of 0.75 inches positions the cutting edge at centerline on correctly sized turret pockets. Typical applications include general-purpose turning of ferrous and non-ferrous materials where CP.. 422 insert grades are specified.

Key Features

• CCLP toolholder style with positive rake geometry for reduced cutting forces
• Clamp-style insert retention for quick and repeatable insert indexing
• Compatible with CP.. 422 series inserts
• Right-hand cutting orientation
• 0.5 inch square shank for standard toolpost and turret mounting
• Steel construction for rigidity and durability in continuous turning applications

Compatibility

Accepts CP.. 422 series indexable inserts. Designed as an OEM-style Kendex series replacement or new-installation toolholder for lathes and turning centers equipped with toolposts or turrets accepting a 0.5 inch square shank.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines for toolpost or turret mounting. Ensure the machine is powered down and at a complete stop before seating or replacing the toolholder. Confirm the cutting edge height relative to spindle centerline before initiating a cut. Torque the clamp screw to the insert manufacturer specification using the appropriate Torx or hex key supplied with the toolholder system.
