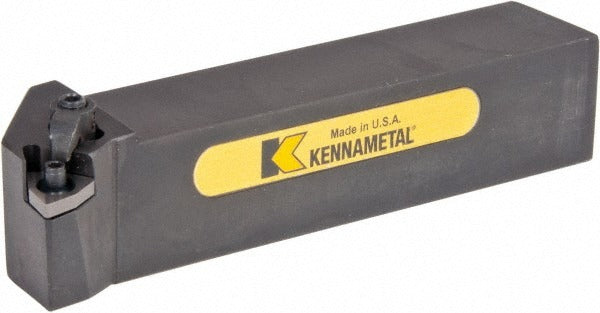

Kennametal 1096363 Mwln Turning Toolholder 1x1 Shank

Product Description

The KENNAMETAL 1096363 is a right-hand MWLN-style indexable turning toolholder engineered for negative rake external turning operations on CNC lathes and turning centers. Built on the Kenloc series platform, it features a steel shank measuring 1 inch wide by 1 inch tall and an overall length of 5 inches. The holder accepts WN..33. inserts, specifically the WN.. 332 insert style, held in place by a combination clamp and screw system. A negative 5-degree rake angle suits heavy interrupted cuts and general-purpose turning where edge strength is the priority. Installed by CNC machinists and toolroom operators, this holder is a direct drop-in for standard MWLNR-style tooling blocks.

This toolholder is designed for use on manual and CNC lathes where a right-hand cutting direction is required. The 1 inch by 1 inch square shank fits a wide range of standard tool posts and turrets. The back-of-bar to cutting edge dimension of 1.25 inches and a head length of 1 inch keep the insert positioned predictably in the cut. The 3/8 inch insert inscribed circle size makes it compatible with a common and widely stocked insert family, reducing insert procurement complexity for production and job-shop environments alike.

Key Features

• MWLN toolholder style with right-hand cutting orientation
• Negative 5-degree rake angle for improved insert strength on heavy or interrupted cuts
• 1 inch x 1 inch steel shank for rigid, precise fitment in standard turrets and tool posts
• Accepts WN..33. inserts (complete compatibility: WN.. 332) via clamp and screw holding method
• 3/8 inch insert inscribed circle for broad insert availability
• Kenloc series design with no coolant-through feature, suited for flood or dry turning setups

Compatibility

Designed to accept WN.. 332 inserts. Fits standard tool posts and turrets sized for a 1 inch x 1 inch square shank. Catalog cross-reference: MWLNR L163C.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before changing or seating the toolholder in the turret. Torque all turret clamping bolts according to the machine tool manufacturer specifications. Verify insert seating and clamp engagement before resuming cutting operations.
