Kennametal 1096188 Mtgn Indexable Turning Toolholder

Product Description

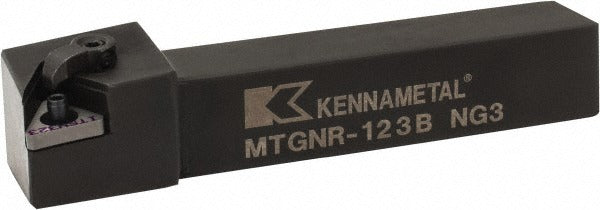

The KENNAMETAL 1096188 is a right-hand MTGN-style indexable turning toolholder built for negative-rake external turning operations. Part of the Kenloc series, it accepts TN..33. (TN.. 332) inserts secured by a clamp-and-screw holding method for rigid, repeatable positioning. The shank measures 0.75 inches wide by 0.75 inches tall with an overall length of 4.5 inches. A -5-degree rake angle suits interrupted cuts and harder workpiece materials where edge strength is critical. The toolholder body is machined from steel. Coolant-through capability is not included. This holder is installed by CNC machinists and manual lathe operators in production and job-shop environments.

This toolholder is suited for external turning on lathes where a right-hand, negative-rake setup is required. The 3/4-inch square shank fits standard tool post and turret pockets common in mid-size engine lathes and CNC turning centers. The Kenloc clamping system locks the insert firmly against the pocket seat, reducing micro-movement under heavy chip loads. Compatible insert inscribed circle is 0.375 inches (3/8 inch), covering a range of standard triangular insert geometries in the TN..33. family.

Key Features

• MTGN toolholder style with -5-degree negative rake angle for edge strength on demanding cuts
• Right-hand cutting orientation for standard lathe setups
• Kenloc clamp-and-screw insert holding method for rigid, repeatable insert seating
• 3/4 inches x 3/4 inches square shank fits standard turret and tool post pockets
• Accepts TN..33. inserts with 0.375-inch inscribed circle
• Steel toolholder body for durability under continuous turning loads

Compatibility

Designed to accept TN..33. series inserts, specifically compatible with TN.. 332 inserts. Insert inscribed circle is 0.375 inches. Intended for right-hand external turning applications on lathes accommodating a 3/4-inch square shank.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Power down and lock out the lathe spindle before changing the toolholder or insert. Seat the shank fully in the turret or tool post pocket and secure all clamping bolts to the machine manufacturer's specification before operation. Inspect the insert pocket and clamping surfaces for chips or debris before seating a new insert.
