Kennametal 1096049 Lh Mssn Indexable Turning Toolholder

Product Description

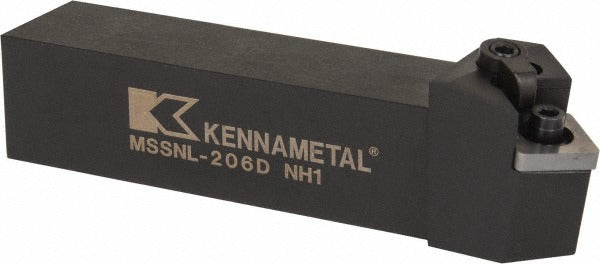

The KENNAMETAL 1096049 is a left-hand MSSN-style negative rake indexable turning toolholder designed for external turning operations on CNC and manual lathes. Built on the Kenloc series platform, it features a 45-degree lead angle and accepts SN..64. style inserts with a 3/4-inch inscribed circle. The toolholder uses a clamp and screw insert-holding method to secure the insert firmly during high-material-removal passes. The steel shank measures 1.25 inches wide by 1.25 inches tall with an overall length of 6 inches. Machinists and toolroom professionals install this holder in square-shank tool blocks and gang tooling setups where left-hand cutting geometry is required.

This toolholder is suited for production turning environments where a left-hand cutting direction is needed, such as facing away from the chuck or turning toward the tailstock in multi-tool setups. The negative rake geometry handles harder workpiece materials and interrupted cuts with greater edge strength than positive rake alternatives. Compatible insert style is SN.. 643. It is appropriate for use on lathes with tool blocks sized to accept a 1-1/4-inch square shank, in both job shop and production machining applications.

Key Features

• Left-hand cutting orientation for turning away from the chuck or toward the tailstock
• Negative rake geometry provides increased edge strength for hard or interrupted cuts
• Kenloc series clamp-and-screw insert retention for secure, repeatable insert seating
• Accepts SN.. 643 inserts with 3/4-inch inscribed circle
• 1.25-inch square steel shank fits standard square-shank tool blocks
• 45-degree lead angle distributes cutting forces across a wider edge length

Compatibility

Designed to accept SN.. 643 style inserts with a 3/4-inch inscribed circle. Fits tool blocks and turrets sized for a 1-1/4-inch square shank. No coolant-through capability.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the lathe before mounting or removing the toolholder from the turret or tool block. Torque the insert clamp screw to the insert manufacturer's specified value using the appropriate Torx or hex key. Verify tool centerline height and lead angle orientation before returning the machine to service.
