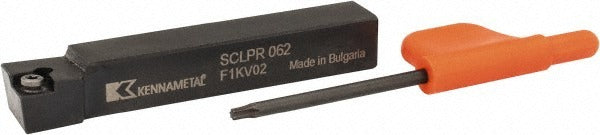

Kennametal 1095594 Sclp Indexable Turning Toolholder

Product Description

The KENNAMETAL 1095594 is a right-hand SCLP-style indexable turning toolholder designed for precision external turning operations on CNC lathes and manual turning centers. It features a screw-on insert holding method with positive rake geometry, which reduces cutting forces and promotes cleaner chip formation on a wide range of workpiece materials. The toolholder accepts CP..21.5. series inserts with a 1/4-inch inscribed circle. The 3/8-inch by 3/8-inch square shank measures 2.5 inches in overall length, making it well-suited for compact tooling setups. Installation is handled by qualified machinists and CNC tooling technicians.

This toolholder is intended for use in light to medium-duty turning applications where positive rake insert geometry is preferred. The 5-degree lead angle configuration helps direct cutting forces along the shank and supports consistent surface finish. The compact head length of 0.44 inches allows close-approach turning in tight-clearance operations. It is commonly used in production machining environments as well as job shop applications requiring reliable, repeatable indexable tooling. The screw-on clamping method provides secure insert retention without the bulk of a lever-lock or clamp-top system.

Key Features

• Right-hand SCLP toolholder style with screw-on insert clamping for secure, repeatable indexing
• Positive rake geometry reduces cutting forces and supports clean chip evacuation
• 3/8 inches x 3/8 inches square shank fits standard small-bore lathe tool stations
• Compatible with CP..21.5. series inserts with 1/4-inch inscribed circle
• Compact 2.5-inch overall length suits tight tooling clearances
• Steel construction for rigidity and durability in continuous turning operations

Compatibility

Designed to accept CP..21.5. series indexable inserts, specifically complete insert compatibility designation CP.. 2151. Verify insert geometry and nose radius against application requirements before ordering inserts separately.

Installation Notes

This toolholder is installed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and the turret is in the safe index position before seating or removing the toolholder. Torque the insert screw to the insert manufacturer specifications using the appropriate Torx or hex key. Confirm shank seating and tool overhang before initiating any cutting pass.
