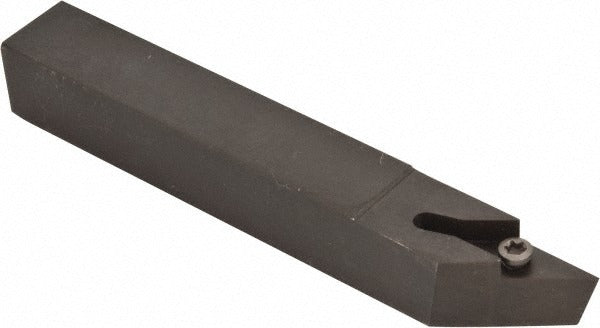

Kennametal 1094611 Indexable Turning Toolholder SVABR103B

Product Description

The KENNAMETAL 1094611 is a right-hand indexable turning toolholder built to the SVABR103B style, using a screw clamping method to secure VB-style inserts. The shank measures 0.625 inches wide by 0.625 inches tall with an overall length of 4.5 inches. Constructed from steel, this toolholder is designed for neutral rake turning operations at a 0-degree rake angle. It is installed by machinists and CNC lathe operators in production and job-shop environments where consistent insert indexing and rigid clamping are required.

This toolholder is suited for external turning applications on CNC and manual lathes. The SVABR103B geometry places the cutting edge at 0.625 inches back-of-bar to the cutting edge, making it appropriate for general-purpose turning passes. The screw-on series design provides positive insert retention, which is valued in interrupted-cut and continuous-cut operations where insert movement would compromise dimensional accuracy. No coolant-through capability is present, so external coolant delivery should be used when required by the application.

Key Features

• SVABR103B toolholder style with right-hand orientation and neutral rake geometry
• Screw clamping method for positive, repeatable insert retention
• Compatible with VB.. 332 indexable inserts with a 0.375-inch inscribed circle
• Steel construction for rigidity and durability in turning operations
• Shank dimensions of 0.625 x 0.625 inches suit standard lathe tool posts and turrets
• Overall length of 4.5 inches with a head length of 1.38 inches

Compatibility

Designed for use with VB.. 332 indexable inserts with a 0.375-inch inscribed circle, as specified by KENNAMETAL for the SVABR103B toolholder style.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. The machine spindle must be powered down and the lathe fully stopped before changing or indexing inserts. The tool post or turret pocket should be cleaned and inspected for chips and wear before seating the toolholder. Follow the insert manufacturer torque guidelines for the clamping screw to avoid insert movement or seat damage during cuts.
