Kennametal 1094593 Sclcr Indexable Turning Toolholder

Product Description

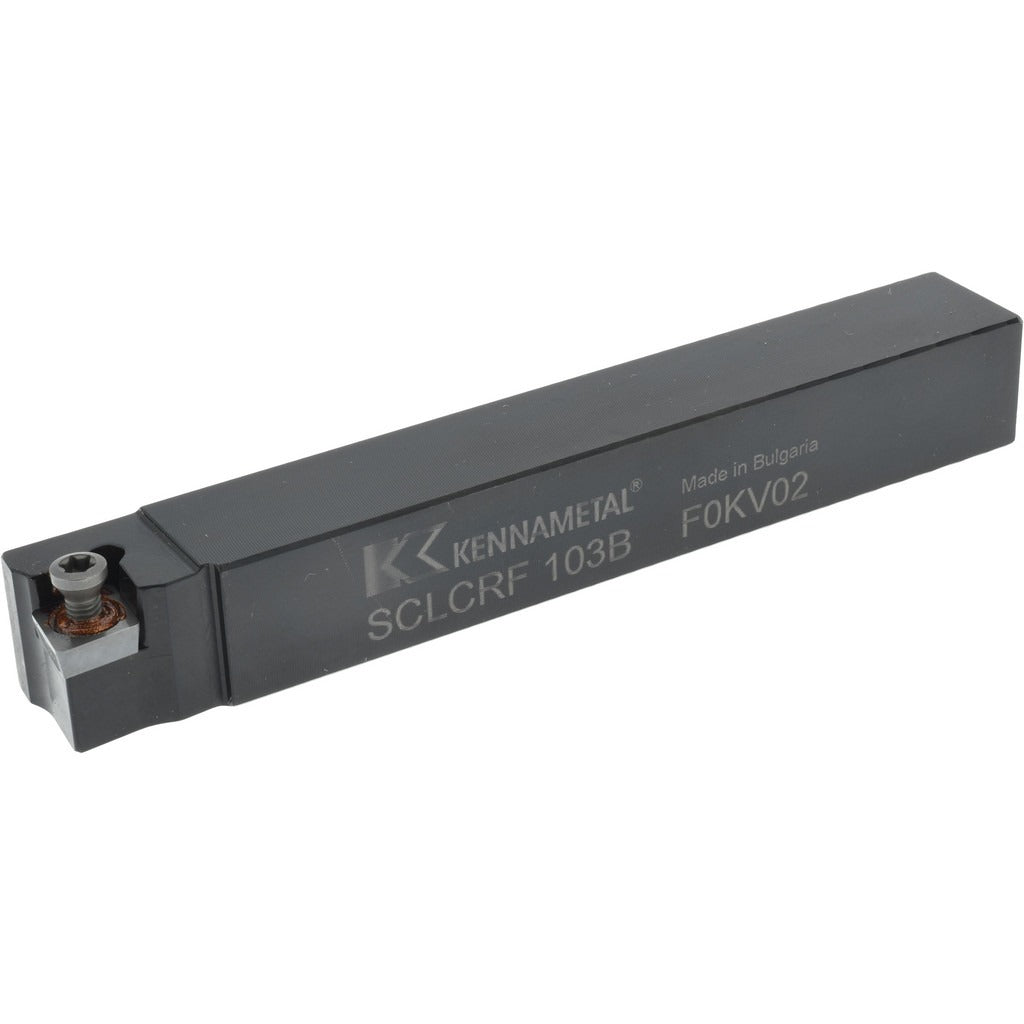

The KENNAMETAL 1094593 is a right-hand SCLCR-style indexable turning toolholder designed for external turning operations on CNC lathes and manual turning centers. It features a neutral rake angle of 0 degrees and accepts CC..32.5. series inserts secured with a screw-on holding method. The shank measures 0.625 inches wide by 0.630 inches tall, with an overall length of 4.5 inches. Constructed from steel, this toolholder is built for consistent rigidity and repeatable insert indexing. It is typically installed by machinists and CNC lathe operators in production and job-shop environments.

This toolholder is suited for right-hand external turning applications in both production and maintenance machining environments. The 5-degree lead angle geometry directs cutting forces effectively during longitudinal turning passes. With a back-of-bar to cutting edge dimension of 0.625 inches and an insert inscribed circle of 0.375 inches, it accommodates standard CC-profile triangular inserts for a wide range of ferrous and non-ferrous turning work. It is a single-use, non-coolant-through holder intended for standard flood or dry cutting setups.

Key Features

• SCLCR toolholder style with right-hand cutting orientation
• Neutral rake angle (0 degrees) for versatile material engagement
• Screw-on insert clamping for quick, secure indexing
• Accepts CC..32.5. series inserts with 0.375-inch inscribed circle
• Steel construction for rigidity and dimensional stability
• Compact 4.5-inch overall length suits tight lathe turret clearances

Compatibility

Designed to accept CC..32.5. series inserts (complete insert compatibility: CC.. 3252). Verify turret pocket dimensions against the 0.625-inch by 0.630-inch shank profile before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC lathe operator. Power down the machine and follow full lockout/tagout procedures before mounting or removing the toolholder from the turret. Ensure the turret pocket is clean and free of chips before seating the shank. Tighten all mounting hardware to the lathe manufacturer's specified torque using appropriate hex keys; do not exceed the turret's maximum clamp load rating.
