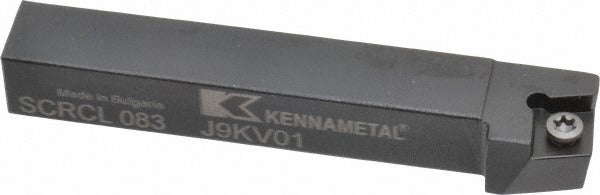

Kennametal 1094512 Indexable Turning Toolholder Lh Scrc

Product Description

The KENNAMETAL 1094512 is a left-hand SCRC-style indexable turning toolholder designed for external turning operations on CNC and manual lathes. Built with a neutral rake angle of 0 degrees, it delivers consistent cutting geometry suited to a wide range of ferrous and non-ferrous materials. The toolholder uses a screw-on insert holding method that secures CC..32.5. series inserts with a 3/8-inch inscribed circle. The square shank measures 0.5 inches wide by 0.5 inches high and the overall length is 3.5 inches. Constructed from steel, it provides the rigidity required for production turning applications. Licensed machinists and CNC operators in metalworking shops are the primary installers.

This toolholder fits standard square-shank tool blocks and turning center turrets that accept 0.5-inch x 0.5-inch shanks. The left-hand orientation makes it appropriate for face turning, shoulder turning, and profiling operations where tool approach from the left is required. The 15-degree lead angle and 0.62-inch head length position the insert for controlled chip flow and stable depth-of-cut engagement. It is a single-use, non-coolant-through toolholder intended for dry or flood-coolant turning environments.

Key Features

• Left-hand SCRC toolholder style for left-hand turning operations
• Neutral rake at 0 degrees for versatile material compatibility
• Screw-on insert clamping for positive insert location and quick indexing
• Accepts CC..32.5. inserts with 3/8-inch inscribed circle
• 0.5 inches x 0.5 inches steel shank for rigid tool block mounting
• 15-degree lead angle with 0.62-inch head length for controlled engagement

Compatibility

Designed for use with CC.. 3252 series inserts as specified by KENNAMETAL. Fits tool blocks and turrets with 0.5-inch x 0.5-inch square-shank pockets.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before changing or seating the toolholder in the turret or tool block. Torque the insert screw according to the insert manufacturer's published guidelines for the CC screw-on series. Confirm correct tool offset entry in the machine controller before taking the first cut.
