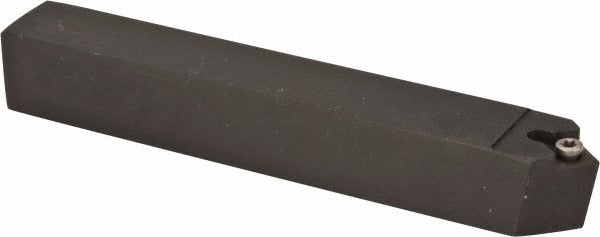

Kennametal 1094498 Indexable Turning Toolholder SCMCN082

Product Description

The KENNAMETAL 1094498 is an indexable turning toolholder built in the SCMCN082 style with a neutral hand orientation and screw-on insert holding method. The shank measures 0.5 inches wide by 0.5 inches tall with an overall length of 3.5 inches. It accepts CC-style inserts with a 0.25-inch inscribed circle, secured via a screw clamp for positive, repeatable positioning. Constructed from steel, this toolholder is suited for general-purpose external turning operations on manual and CNC lathes. The neutral rake angle of 0 degrees provides a versatile cutting geometry across a range of workpiece materials. Licensed machinists and CNC operators install this holder as part of a modular turning setup.

This toolholder is designed for external turning applications in production and job-shop environments. The SCMCN082 configuration suits operations where a neutral hand approach is required, such as straight turning and facing on both manual lathes and CNC turning centers. The screw-on series design allows quick insert indexing without removing the toolholder from the turret or tool post, reducing changeover time during high-mix machining runs. The 0.25-inch back-of-bar to cutting edge dimension supports precise tool center height setup.

Key Features

• SCMCN082 toolholder style with neutral hand orientation for straight turning and facing
• Screw-on insert clamping method for secure, repeatable insert seating
• Accepts CC-style inserts with 0.25-inch inscribed circle (CC.. 2151 compatibility)
• Steel construction for rigidity and durability in continuous turning operations
• Neutral rake angle (0 degrees) provides versatile cutting geometry
• Compact 3.5-inch overall length suits tight turret clearances

Compatibility

Compatible with CC-style inserts bearing a 0.25-inch inscribed circle, per complete insert compatibility designation CC.. 2151. Designed as a screw-on series indexable turning toolholder for use in standard tool-post and turret configurations accepting a 0.5 x 0.5 inch shank.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before mounting or indexing inserts. Ensure the tool center height matches the machine spindle centerline before tightening the toolholder in the turret or tool post. Follow the machine manufacturer torque specifications for turret seat fasteners; do not overtighten the insert screw beyond the insert manufacturer guidance.
