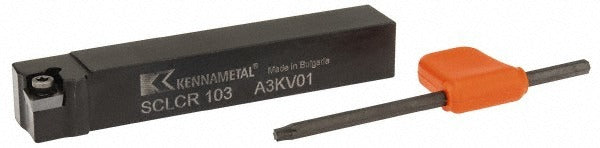

Kennametal 1094483 Sclc Indexable Turning Toolholder

Product Description

The KENNAMETAL 1094483 is a right-hand SCLC-style indexable turning toolholder designed for external turning operations on CNC and manual lathes. Built with a neutral rake angle of 0 degrees, it accepts CC..32.5. series inserts secured by a screw-on clamping method. The square shank measures 0.625 inches wide by 0.630 inches tall with an overall length of 4 inches. Constructed from steel, this toolholder is suited for production turning environments where consistent insert indexing and rigid tool holding are required. Licensed machinists and CNC operators working in job shops or production facilities are the primary users.

This toolholder is appropriate for external turning applications in both job-shop and production settings. The SCLC style with a 5-degree lead angle suits general-purpose turning on ferrous and non-ferrous materials. The screw-on insert retention method provides solid clamping force at moderate to high feed rates. With a back-of-bar to cutting edge distance of 0.750 inches and a head length of 0.620 inches, the geometry is well-suited for shoulder turning and profiling passes where controlled depth of cut is needed.

Key Features

• Right-hand SCLC toolholder style with 0-degree neutral rake angle
• Accepts CC..32.5. series inserts (inscribed circle 0.375 inches) via screw-on clamping
• Square steel shank: 0.625 inches wide x 0.630 inches tall, 4 inches overall length
• Back of bar to cutting edge: 0.750 inches for predictable tool offset setup
• Head length of 0.620 inches supports compact tool station configurations
• No coolant-through capability — suitable for flood or dry cutting setups

Compatibility

Designed for use with CC..32.5. series indexable inserts, including complete insert compatibility designation CC.. 3252. Verify insert geometry and nose radius against your specific application requirements before ordering.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the toolholder in the turret or tool post to the machine manufacturer's specified torque using appropriate hex keys — do not overtighten the insert screw beyond the insert manufacturer's recommendation. Ensure the lathe is fully powered down and the spindle is locked before changing inserts or repositioning the toolholder. Inspect the insert seat and clamping screw for wear or debris before each insert index.
