Kennametal 1094475 Sclc Indexable Turning Toolholder Rh

Product Description

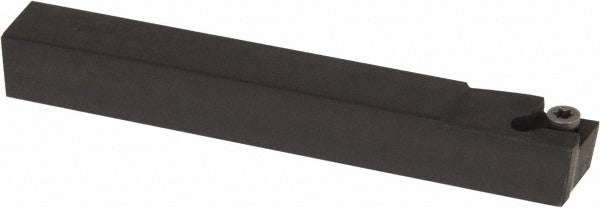

The KENNAMETAL 1094475 is a right-hand SCLC-style indexable turning toolholder designed for external turning operations on CNC lathes and manual turning centers. Built to a neutral rake angle of 0 degrees, it accepts CC..21.5. series inserts held in place by a screw-on clamping method. The shank measures 0.3125 inches wide by 0.3250 inches tall, with an overall length of 2.5 inches. The toolholder body is constructed from steel and is suited for precision turning applications where consistent insert indexing and rigid tool engagement are required. Licensed machinists and CNC operators are the primary installers.

This toolholder is intended for use in light-duty turning applications where a compact shank size is appropriate. The 5/16 inch shank profile fits smaller tool blocks and turrets common on bench lathes and compact CNC turning centers. With a 5-degree lead angle and a back-of-bar to cutting edge measurement of 0.375 inches, it positions CC..21.5. inserts at a geometry suited for longitudinal and facing cuts. It is a single-application tool with no coolant-through capability.

Key Features

• Right-hand SCLC toolholder style for external turning operations
• Neutral rake angle (0 degrees) compatible with CC..21.5. series inserts
• Screw-on insert holding method for secure, repeatable indexing
• Compact 5/16 inch square shank fits small turrets and tool blocks
• Steel construction for rigidity and durability in turning service
• Head length of 0.5 inches for precise insert positioning

Compatibility

Designed for use with CC..21.5. series indexable inserts, specifically compatible with CC.. 2151 inserts per the complete insert compatibility designation. This toolholder is intended for use in tool blocks and turrets that accept a 5/16 inch shank profile.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. The machine spindle must be fully stopped and the turret locked out before mounting or changing the toolholder. Verify that the insert is properly seated and the clamping screw is torqued according to the insert manufacturer's guidelines before resuming cuts. Inspect the insert and screw for wear during each tool change.
