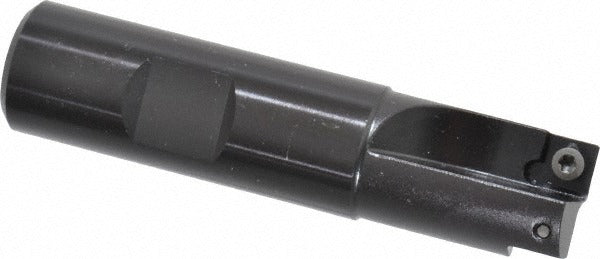

Kennametal 1023583 Square-shoulder End Mill 3/4 in 2 Flute

Product Description

The KENNAMETAL 1023583 is an indexable square-shoulder end mill built around the KICR cutter style and designed for precise 90-degree shoulder milling operations. It accepts two SDEB 2615 screw-clamped inserts, producing clean, true square shoulders in steel, cast iron, and similar workpiece materials. The cutter carries a 3/4-inch cutting diameter and a maximum depth of cut of 0.28 inches (7.11 mm), making it well suited for light-to-moderate shoulder and face milling passes. With a maximum spindle speed rating of 10,500 RPM and a 3-1/4-inch overall length, it fits standard CNC machining centers and manual mills equipped with the appropriate toolholder.

This end mill is intended for machine shops, toolrooms, and production environments where accurate square-shoulder profiles are required. The cylindrical shank measures 3/4 inch in diameter and 2.03 inches in length, allowing direct chucking in ER collet chucks, milling chucks, or Weldon-flat holders. It is a two-flute design, keeping chip evacuation manageable in slotting and shoulder applications. Lead angle is 0 degrees, confirming true radial wall engagement. Coolant-through capability is not supported on this body.

Key Features

• KICR cutter style with 0-degree lead angle for true 90-degree square shoulders
• Accepts two SDEB 2615 inserts secured by screw-clamp method
• Maximum depth of cut of 0.28 inches (7.11 mm) per pass
• Rated to 10,500 RPM for use on standard CNC and manual milling platforms
• 3/4-inch cylindrical shank compatible with ER collet, milling chuck, and Weldon-style holders
• Two-flute configuration promotes chip clearance during shoulder and face milling

Compatibility

Uses two SDEB 2615 inserts. Designed as an OEM-style indexable end mill body for use in standard milling machines and CNC machining centers equipped with a 3/4-inch toolholder bore.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is locked out before mounting or removing the cutter body. Insert seating surfaces and the cutter pocket should be clean and free of chips before securing inserts with the clamping screw. Verify toolholder runout after assembly and confirm that programmed feed rates and depths of cut do not exceed the rated maximums for the selected insert grade.
