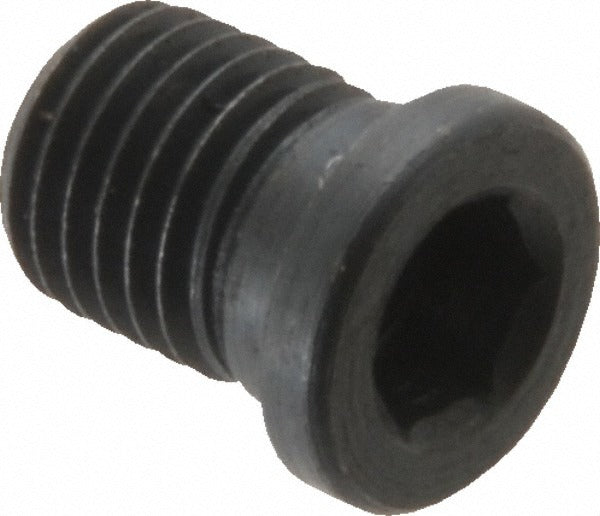

Kennametal 1020919 Cap Screw Indexables TP15 Torx Plus

Product Description

The KENNAMETAL 1020919 is a cap screw designed for indexable tooling systems used in milling and turning applications. This screw secures indexable inserts and shims within the tool body, maintaining precise insert positioning during cutting operations. The 1020919 uses a TP15 Torx Plus drive, which provides improved torque transfer and reduces driver cam-out compared to standard hex or Phillips drives. Weighing approximately 0.003 pounds, it is a small but critical fastener that licensed machinists and toolroom technicians rely on to keep indexable toolholders performing consistently. Sold individually, with a minimum order quantity of 10 pieces.

This cap screw is intended for use in indexable milling and turning toolholders that accept a TP15 Torx Plus drive screw. It is also compatible with shim hardware within those toolholder assemblies. Typical install scenarios include production machining environments, job shops, and maintenance toolrooms where indexable insert systems are serviced regularly. When inserts or shims are rotated or replaced, the cap screw is removed and reinstalled as part of standard toolholder maintenance.

Key Features

• TP15 Torx Plus drive for improved torque transfer and reduced cam-out risk
• Compatible with both milling and turning indexable toolholder systems
• Designed for use with shim hardware in indexable assemblies
• Lightweight at approximately 0.003 pounds for minimal toolholder impact
• Sold as a single unit with a minimum order quantity of 10

Compatibility

Designed for use with KENNAMETAL indexable milling and turning toolholders that accept a TP15 Torx Plus drive cap screw, including assemblies that incorporate shim hardware.

Installation Notes

Installation and removal should be performed by a qualified machinist or toolroom technician using a calibrated TP15 Torx Plus driver or wrench. Power down and lock out all machine tools before servicing any indexable toolholder. Do not substitute a standard Torx driver for the Torx Plus drive, as this can damage the screw head. Follow the toolholder manufacturer's recommended seating procedure when securing indexable inserts and shims.
