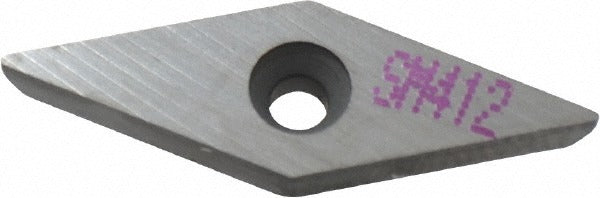

Kennametal 1017168 Boring Bar Indexable Sm Shim

Product Description

The KENNAMETAL 1017168 is an SM-style indexable shim designed for use in boring bar toolholders. Shims in indexable cutting systems provide precise seating and height control for the insert, maintaining consistent cutting geometry and protecting the toolholder pocket from wear. This shim supports left hand, neutral, and right hand cutting directions, making it a versatile replacement or spare component. At 0.05 pounds, it is a lightweight precision component intended for installation by machinists and toolroom professionals working with indexable boring bar setups.

This shim is suited for boring bar applications in production and job-shop machining environments, including both manual and CNC turning operations. The SM shim style is a defined geometry classification within indexable tooling systems. Shops running multi-directional boring operations benefit from stocking this shim, as its compatibility with left hand, neutral, and right hand cutting directions reduces the number of separate components needed on the shelf.

Key Features

• SM shim style for indexable boring bar toolholders
• Compatible with left hand, neutral, and right hand cutting directions
• Lightweight at 0.05 pounds for minimal toolholder mass contribution
• UNSPSC Code 27112800 for procurement and catalog classification
• Sold individually; minimum order quantity of 10 units

Compatibility

Designed as an OEM-style replacement shim for SM-style indexable boring bar toolholders. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out any machine spindle before servicing toolholders or replacing indexable components. Ensure the shim seat and toolholder pocket are clean and free of chips or debris before seating the shim to maintain accurate insert height. Follow the toolholder manufacturer's torque and assembly specifications for the clamping screw.
