Ken Forging K2029 Stock No. K2029-UNF-ZN Shoulder Pattern Eyebolt 7/8-14 X 2-1/4 K2029-HDG

Product Description

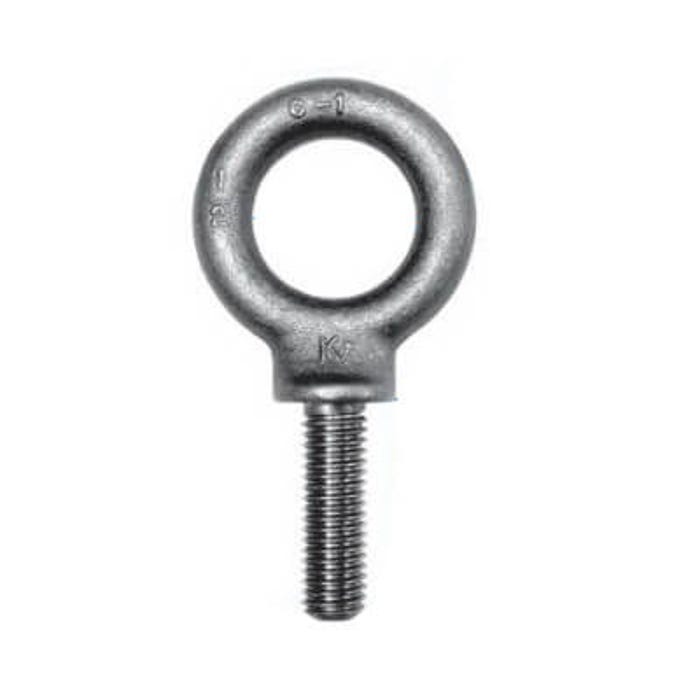

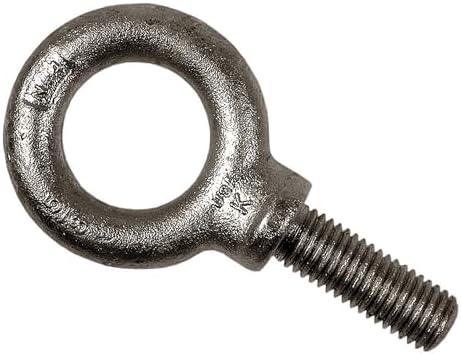

The KEN FORGING K2029 Stock No. K2029-UNF-ZN is a 7/8-14 X 2-1/4 shoulder pattern eyebolt with fine thread and zinc plating. It is drop forged from carbon steel and adheres to ASTM A489 standards. This eyebolt is fully threaded UNF-2A before plating and is melted and manufactured in the United States.

• Drop Forged Carbon Steel
• ASTM A489
• Fully Threaded: UNF-2A before plating

Product Highlights

The KEN FORGING K2029 is a durable and reliable choice for various lifting applications, featuring a robust design and adherence to industry standards.

Product Information

Standard Information

• Brand: KEN FORGING
• Manufacturer Part Number: K2029
• Country of Origin: USA

Technical Specifications

• A Shank Dia. & Thread UNF-2A/UNS-2A*: 7/8-14
• B Shank Length: 2 1/4
• C Eye I.D.: 1 11/16
• D Eye O.D.: 3 1/4
• Rated Capacity: 7,000
• Note: Before Plating
• Shank Dia. & Thread UNC-2A: 7/8-9
• Manufacturer Part Number: K2029
• Manufacturer: Ken Forging
• Brands: KEN FORGING
• Material: Steel
• Model: K2029
• Country of Origin: US
• Fastener Type: Eye Bolt
• Thread Style: Right Hand
• Part Number: K2029-HDG
• Unit Count: 1.0 Count
• Item Weight: 1.7 Pounds
• Exterior Finish: Galvanized
• Features: Machinery Eye Bolt, System of Measurement Inch, Eyebolt Type Lift
• Number Of Items: 1
