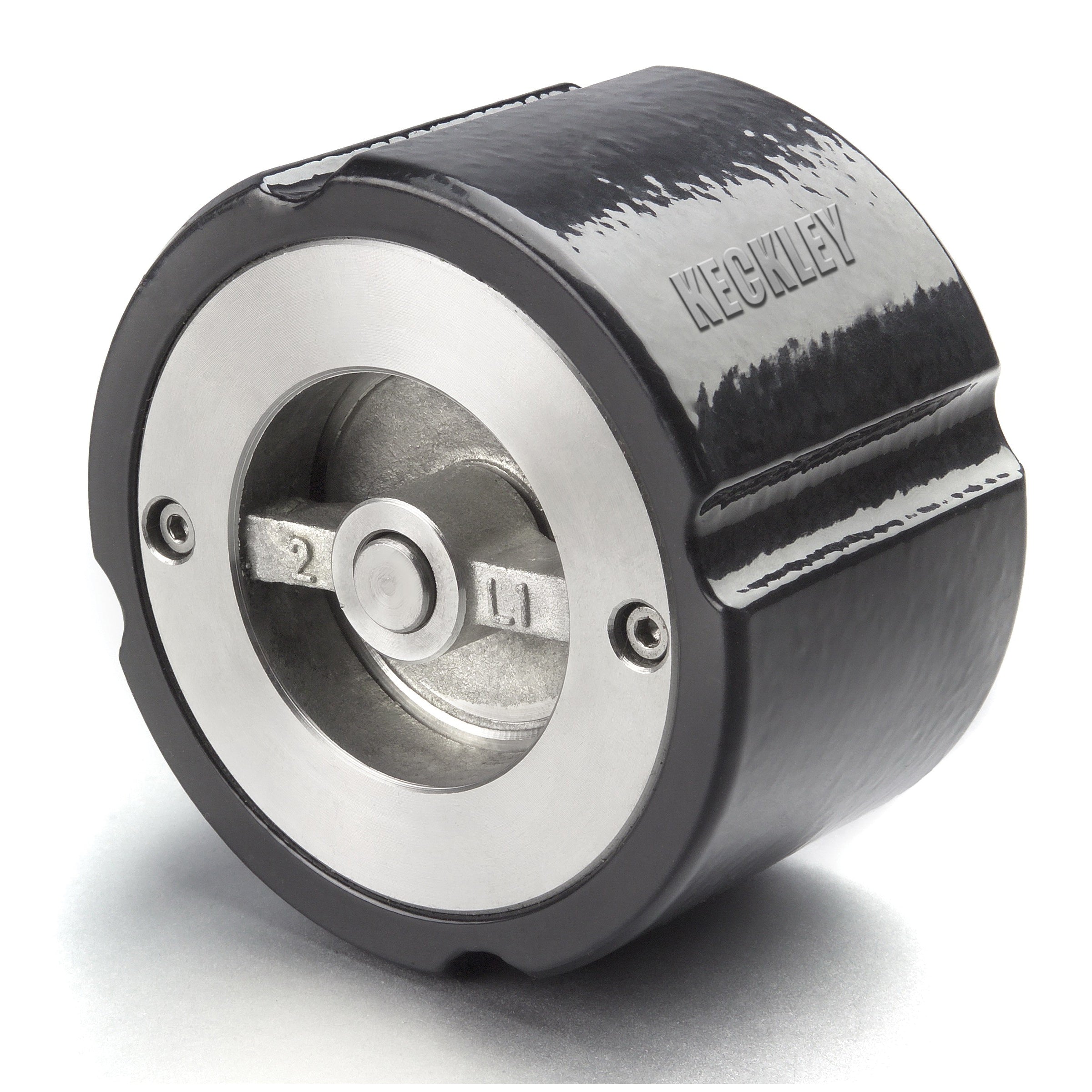

Keckley CW1F-CI-B2334-250 Silent Check Valve 2-1/2 in

Product Description

The Keckley CW1F-CI-B2334-250 is a dual rated silent check valve designed to protect pipelines from liquid flow reversal. This valve is suitable for liquid applications and features a wafer end style. It provides reliable performance in environments with gas, oil, or water.

• Constructed from durable cast iron
• Epoxy coated for enhanced longevity
• Field serviceable without special tools

Product Highlights

This silent check valve helps prevent flow reversal and water hammer, ensuring system integrity.

Product Information

Standard Information

• Brand: Keckley
• MPN: CW1F-CI-B2334-250

Technical Specifications

• Body Material: Cast Iron
• Finish: Epoxy Coated
• Nominal Size: 2-1/2 in
• Pressure Rating: 500 psi
• Pressure Class: 125/250 lb
• Temperature Rating: 150 deg F
• Media: Gas/Oil/Water
• Inlet to Outlet Length: 2-7/8 in
• Trim Material: Bronze/304 Stainless Steel
• End Style: Wafer
• Type: Dual Rated
• Dimensions: 5/8 in Bolt Dia
