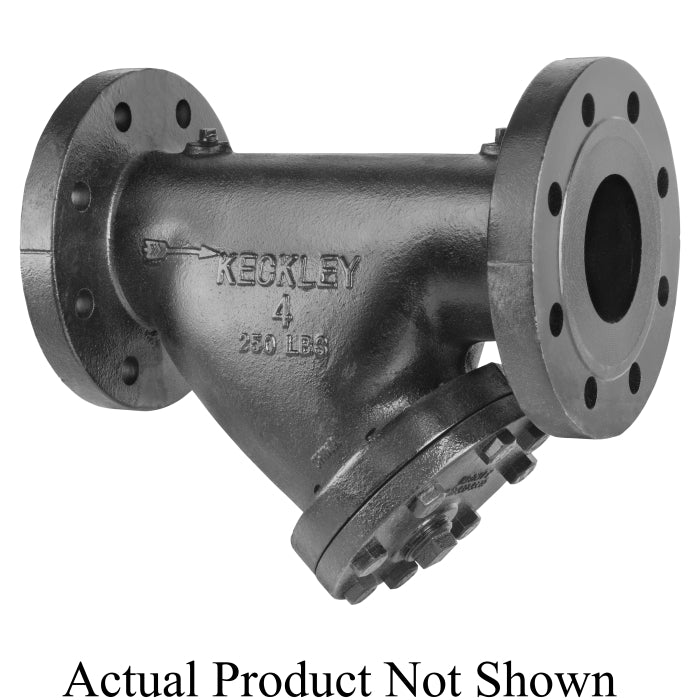

Keckley 103RFY-CI250P34-FBI-A7 Wye Strainer 10 in

Product Description

The Keckley 103RFY-CI250P34-FBI-A7 is a wye strainer designed for water service. It features a bolted cover connection and a one-eighth inch perforated 304 stainless steel screen. This strainer has a nominal size of ten inches and an overall length of twenty-nine and one-eighth inches. The raised face flanged connection makes installation straightforward.

• Constructed from ASTM A 126 Class B cast iron
• Equipped with a blow-off size of two inches
• Contains fiber softgoods for durability

Product Highlights

The Keckley Y-strainer allows for easy maintenance. It is fitted with drain connections for simple screen cleaning while the system remains operational.

Product Information

Standard Information

• Brand: Keckley
• Manufacturer: Keckley

Technical Specifications

• Blow-Off Size: 2 in
• Body Material: Cast Iron
• Connection Type: Raised Face Flanged
• Domestic/Import: Import
• Grade: B
• Nominal Size: 10 in
• Overall Length: 29-1/8 in
• Series: Style A7I
• Softgoods Material: Fiber
