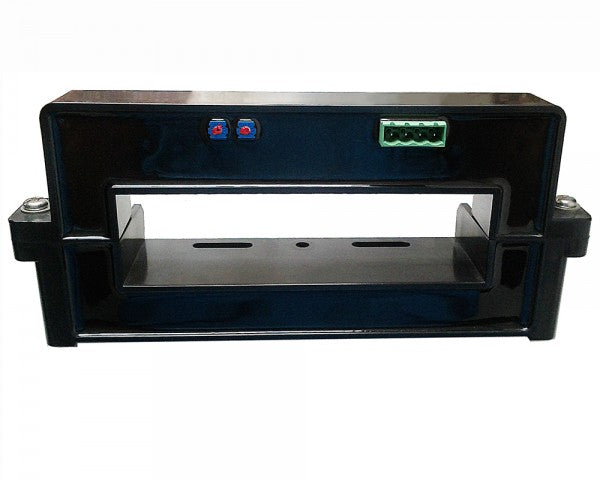

KCC MANUFACTURING KCC-1187 Hall Effect DC Current Sensor

Product Description

The KCC MANUFACTURING KCC-1187 is a Hall Effect current sensor. It uses an open-loop principle to measure DC current. This sensor has a solid core and provides galvanic isolation between the primary conductor and the secondary circuit. It reflects the real-time waveform of the current flowing in the conductor.

• Employs a split core for easy installation.
• Features a window structure with a split core design.
• Electrically isolates the sensor output from the conductor.

Product Highlights

This sensor is ideal for various applications, including electrical measurements in industrial settings. The compact design allows for easy integration into existing systems.

Product Information

Standard Information

• Brand: KCC MANUFACTURING
• MPN: KCC-1187

Technical Specifications

• Sensor Type: Open-Loop
• Nominal Input Current: 0-1000A, 0-2000A, 0-3000A, 0-4000A, 0-5000A, 0-6000A, 0-8000A, 0-10000A
• Power Supply: +12 V DC, +15 V DC, +24 V DC, ±12 V DC, ±15 V DC, ±24 V DC
• Output Signal: 4-20 mA DC
• Current Type: DC
• Window Type: Rectangle
• Window Size: 140 x 36 mm
• Direction: Unidirectional, Bidirectional
• Accuracy: 1%
• Linearity: 1%
• Operating Temperature: -25°C to +85°C
• Frequency Bandwidth: DC-3 kHz
