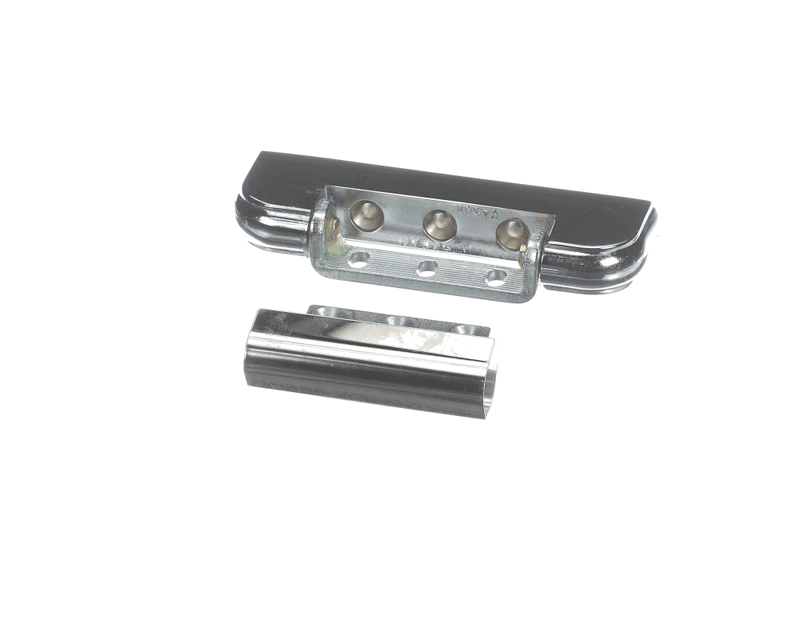

Kason 10214000012 0214 Adjustable Hinge 1 3/8 Inch Offset

Product Description

The KASON 10214000012 0214 Adjustable Hinge mounts close to refrigerator doors, requiring minimum jamb width. It features an adjustment range of 1/8" (3.2 mm) and is easily adjusted by loosening the mounting screw and resetting the serrated adjustment plate. This hinge is interchangeable for right or left-opening doors and has a 1 3/8 Inch Offset.

• Mounts close to refrigerator door, requiring minimum jamb width
• Adjustment range is 1/8" (3.2 mm)
• Interchangeable for right or left-opening door

Product Highlights

The Kason 0214 adjustable hinge features a high-pressure, die-cast zinc flange and adjustment plate, a brass cover, and a zinc-plated steel strap.

Product Information

Standard Information

• Brand: KASON
• Manufacturer Part Number: 10214000012

Technical Specifications

• Brand: Kason
• Finish Type: Polished
• Mounting Type: Door Mount
• Manufacturer: Kason
• PART NUMBER: 10214000012
• Units: Each
• Finish: Polished chrome
• Mounting: Drilled and countersunk for No. 10 (5.0 mm) screws
• Adjustment range: 1/8" (3.2 mm)
• Offset: 1-3/8" (34.9 mm)
