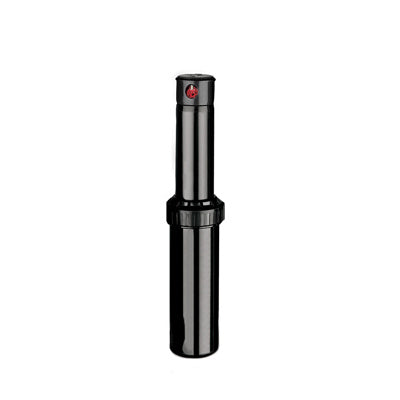

K-RAIN 11003 K-Rain 3/4 Pro Plus Rotor 11003-RCW 5 Pop up Height Non-Potable

Product Description

K-Rain Manufacturing Corp. offers the 11003 model, a 3/4 Pro Plus Rotor with a five-inch pop-up height. This rotor is designed for non-potable applications. It features an adjustable arc and a full-circle gear-driven mechanism. The model comes with nine interchangeable nozzles that are numerically coded. It is known for its reliable performance which can help save installation time and reduce expenses. It provides excellent coverage with up to 90% uniform coverage, ensuring efficient water distribution.

• Adjustable arc with full-circle capability.
• Numerically coded interchangeable nozzles.
• Flow rates from .5 to 10.0 GPM.

Product Highlights

The 11003 rotor is suitable for various sprinkler situations, allowing you to adjust the arc for specific landscape needs. Its design optimizes coverage and minimizes water wastage.

Product Information

Standard Information

• Brand: K-Rain Manufacturing Corp.
• MPN: 11003

Technical Specifications

• Inlet: 3/4 Threaded NPT
• Arc Adjustment Range: 40 degrees to Continuous 360 degrees
• Flow Range: .5 - 10.0 GPM
• Pressure Rating: 20 - 70 PSI
• Precipitation Rate: .06 to .50 Inches Per Hour (depending on spacing and nozzle used)
• Overall Height (Popped Down): seven and a half inches / seventeen inches for high pop
• Recommended Spacing: twenty-eight to forty-four feet
• Radius: twenty-two to fifty feet
• Nozzle Trajectory: twenty-six degrees
• Low Angle Nozzle Trajectory: twelve degrees
• Riser Height: five inches
