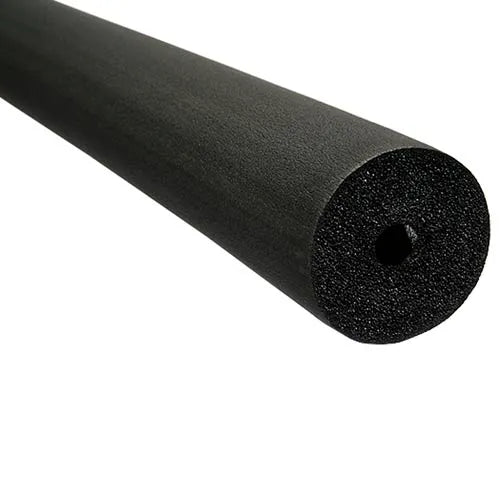

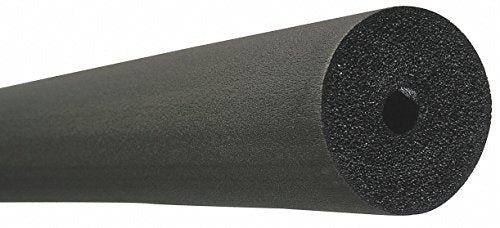

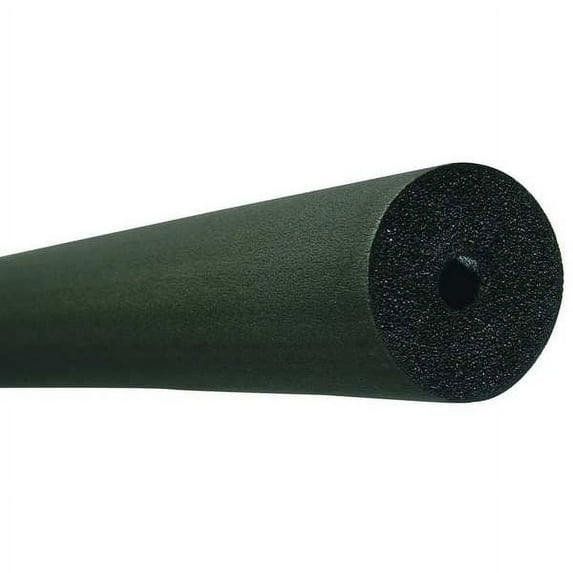

K-Flex Usa 6RX100418 Nbr/pvc Based Elastomeric Pipe Insulation 1 inches Wall Thickness

Product Description

The K-FLEX USA 6RX100418 pipe insulation is constructed from NBR/PVC. This unslit pipe insulation has a 1" wall thickness and is 6 ft. long. It fits pipe sizes of 3-1/2 In. and tube sizes of 4-1/8 In. and has a temperature range of -297 Degrees to 220 Degrees F.

• Made from NBR/PVC
• 1 In. wall thickness
• Insulation Temp. Range -297 Degrees to 220 Degrees F

Product Highlights

The K-FLEX USA pipe insulation is ideal for reducing energy consumption and provides moisture and mold/mildew resistance.

Product Information

Standard Information

• Brand: K-FLEX USA
• Manufacturer Part Number: 6RX100418

Technical Specifications

• Insulation Body Material: NBR/PVC
• Type: Pipe Insulation Unslit
• Wall Thickness - Insulation: 1 In.
• Insulation Length: 6 ft.
• Fits Pipe Size - Pipe Insulation: 3-1/2 In.
• Fits Tube Size: 4 1/8"
• Insulation Nominal I.D.: 4-1/8 In.
• Insulation Temp. Range: -297 Degrees to 220 Degrees F
• Insulation Approx. R Value: 5.40
• Material: NBR/PVC Based Elastomeric
• Brand: K-Flex Usa
• Model: 6RX100418
• Installation Style: Unslit
• Inside Diameter: 4 1/8 in
• Overall Length: 6 ft
• Minimum Operating Temperature: -297 Degrees F
• Maximum Operating Temperature: 220 Degrees F
• Facing Material: Unfaced
• R Value: 5.4
• Form: Tube
• For Copper Tube Size: 4 1/8 in
• For Pipe Size: 3 1/2 in
• Flame Spread Index: 61
• Smoke Developed Index: 86
• Foam Cell Type: Closed
• Plenum Rating: Plenum Rated
• Flexibility: Flexible
• Item: Pipe Insulation
• Body Material: NBR, PVC
• Features: Fiber Free, Non Dusting
• Fits Pipe Size: 3 1/2"
• For Environment: Submersible
• Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
• Insulation Material: Buna N Rubber, PVC
• Insulation R Value: 5.4
• Outside Diameter: 6 1/8"
• Resistance Properties: Moisture Resistant, Mold/Mildew Resistant
• Thickness: 1"
• Tube Style: Unslit
• Wall Thickness: 1"
• Standards: ASTM C411, ASTM C534 TYPE 1, ASTM D1056-00-2C1, ASTM E84, CAN/ULC S-102-M88, FMRC 2006, MIL-P-15280, NEW YORK CITY MEA 186-86-M VOL. IV, NFPA 255, NFPA 90A SECT 2.3.3, NFPA NO 101 CLASS A, UL 181 11.0
