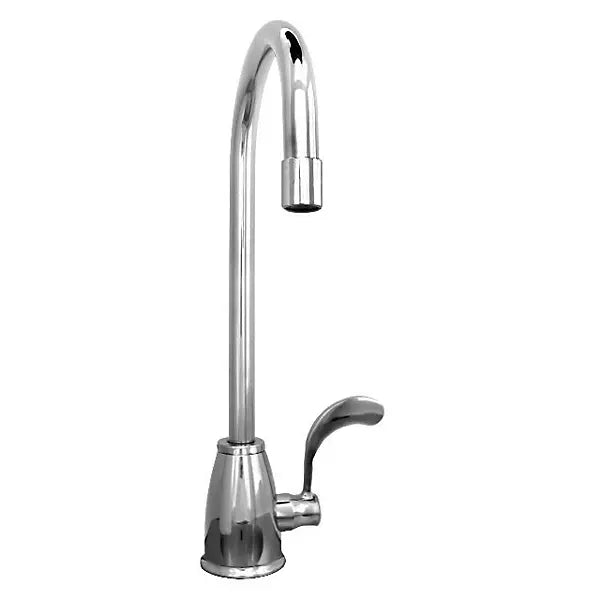

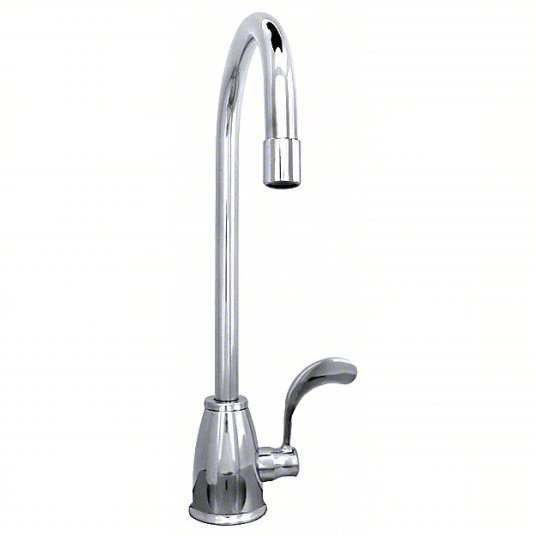

Just Manufacturing JSFVR5 Gooseneck Kitchen Faucet 2 GPM

Product Description

The Just Manufacturing JSFVR5 gooseneck-spout faucet has a tall spout shape that extends high above the counter and curves to point straight down into the sink. It is ideal for filling stockpots and other tall vessels. Features a cast 304 stainless steel body and push activator.

• ADA Compliant
• Self closing, push button controlled
• Features totally lead-free construction

Product Highlights

This vandal resistant faucet has a highly buffed/mirror finish and a stainless steel replaceable regulator cartridge. Conforms with ANSI standard 112.18.1.

Product Information

Standard Information

• Brand: JUST MANUFACTURING
• Manufacturer Part Number: JSFVR5
• Country of Origin: TWN

Technical Specifications

• Category: Kitchen Faucet
• Flow Rate: 2 gpm
• Installation Type: Deck Mounted
• Material: Stainless Steel
• Brand: JUST MANUFACTURING
• Spray Type: Standard
• Handle Type: Lever Handle
• Deck Clearance: 9-3/4"
• Spout Type: Gooseneck
• Valve Connection: 1/2"-14 NPSM
• ADA: Yes
• Product Type: Faucet
• Operation Method: Manual
• Mounting Type: Single-Post
• Mounting Location: Deck
• Flow Type: Spray
• Body Material: Stainless Steel
• Number of Mounting Holes: 1
• Number of Handles: 1
• Handle Material: Stainless Steel
• Spout Shape: Gooseneck
• Spout Style: Fixed
• Spout Reach: 5-5/16 in
• Spout Height: 14 in
• Spout Outlet Height: 9-3/4 in
• Power Source: Manual
• For Water Temperature: Hot/Cold
• Temperature Control: Non-Adjustable
• Temperature: Single Tempered Line
• Water Supply Type: Single Tempered
• Inlet Connection Size: 1/2 in
• Inlet Connection Type: NPSM
• Inlet Connection Gender: Male
• Overall Width: 2-3/8 in
• Max. Installation Surface Thickness: 1-3/8 in
• Min. For Mounting Hole Diameter: 1-1/4 in
• For Location: Kitchen
• Application: Industrial
• Includes: Mounting Hardware
• Includes Drain: Drain Not Included
• Compatible Cartridge Mfr. Part Number: V5450
• Vandal Resistance: Vandal-Resistant
• Outlet: CEC Compliant
• ADA Compliance: ADA Compliant
• Standards: ASME A112.18.1/CSA B125.1; NSF 61/9
• Manufacturer Part Number: JSFVR5
• UNSPSC: 40141702
• Model: JSFVR-5
• MPN: JSFVR-5
• UPC: 671035500058
• Country of Origin: China
• Mounting Hole Center to Center: Single Hole
• Finish: Stainless Steel
• Faucet Operation: Manual
• Vandal Resistant Features: Vandal Resistant Outlet
• Green Environmental Attribute: Product Contains a Minimum of 80% Post-Consumer Recycled Content
• Replacement Cartridge: V5450
• Flow Outlet Type - Faucet: Aerated
• Valve Type: Ceramic
• Mounting Type - Faucet: Deck
• Mounting: Deck
• Connection: 1/2" MNPS
• Faucet Spout Shape: Gooseneck
• Faucet Finish: Stainless Steel
• Faucet Type: Kitchen Sink Faucet
• Faucet Handle Type: Lever
• Compliance: AB1953 Low Lead
• Type: Single Handle
• Valve Type - Faucets: Hot/Cold Cartridge
• CEC Compliant: CEC Compliant
• Max. Mounting Hole Center Distance: Single Hole
• Ligature Resistant: No
• Faucet Activation: Manual
• Faucet Handle Material: Stainless Steel
• Faucet Body Material: Stainless Steel
• Material of Construction: Stainless Steel
• Outlet Type: Aerator
• Faucet type: Kitchen Faucets
• Rec. use: Kitchen
• Spout Length: 9-3/4"
