JONES STEPHENS D49127 3X4 PVC DRN W/ 5 PB STR & RNG

Product Description

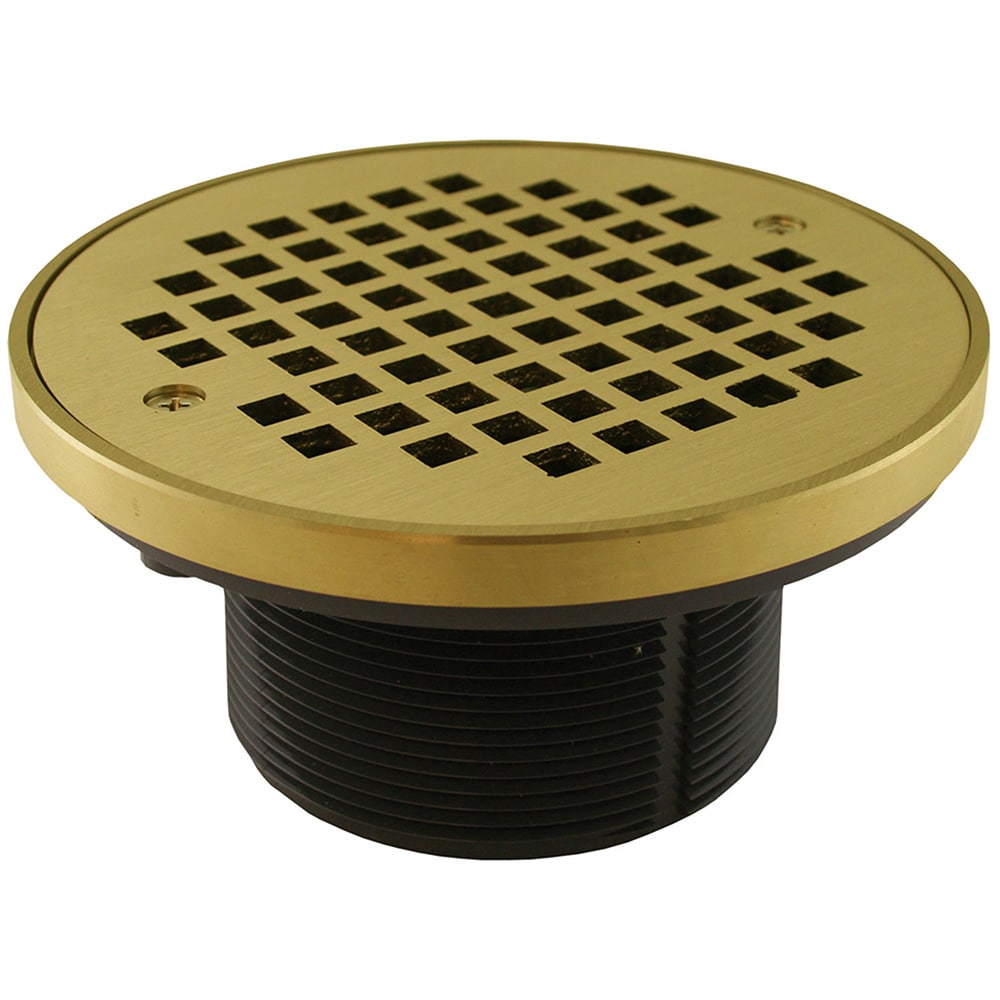

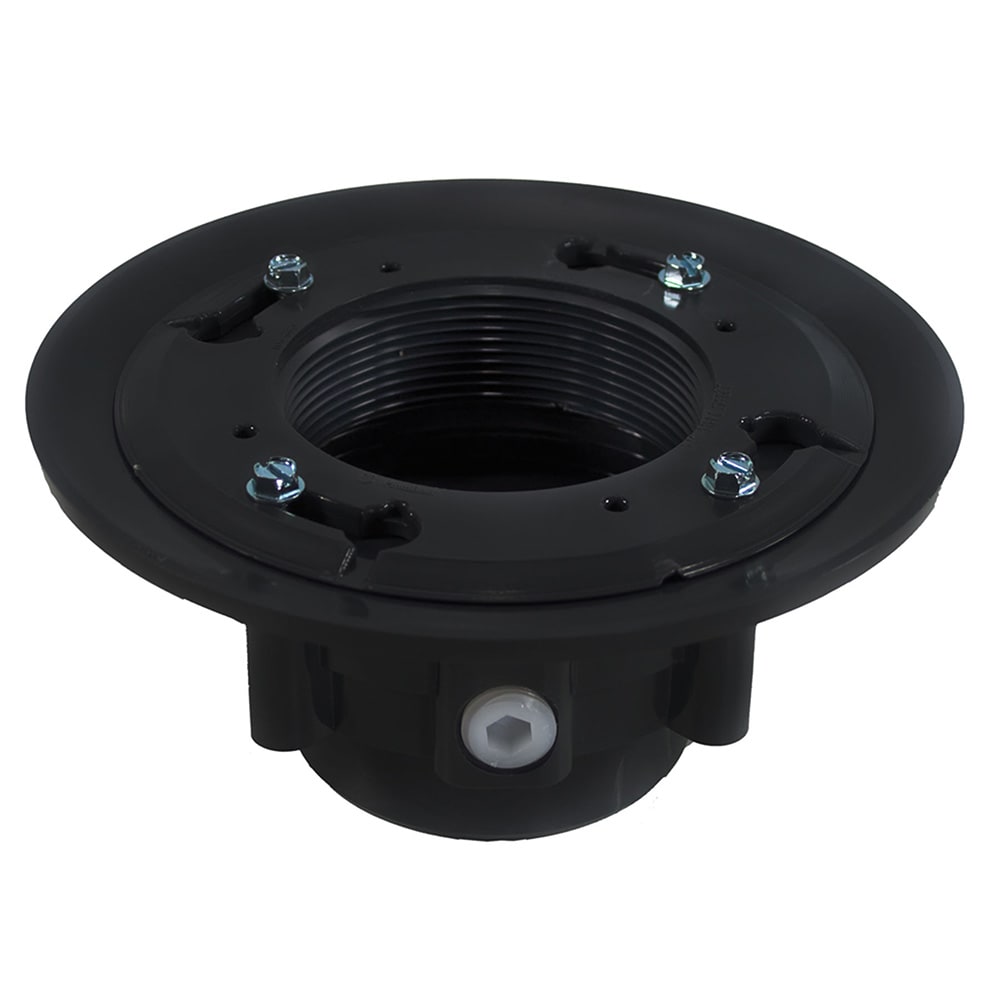

The JONES STEPHENS D49127 is a 3X4 PVC drain designed for floor and shower applications. It fits over three-inch and inside four-inch schedule 40 DWV pipe using a solvent weld connection. This unit includes a three-and-a-half-inch IPS plastic spud and an eight-and-a-half-inch pan primer taped with a half-inch plug.

• Adjustable height from four-and-three-quarter inches to six-and-five-sixteenths inches

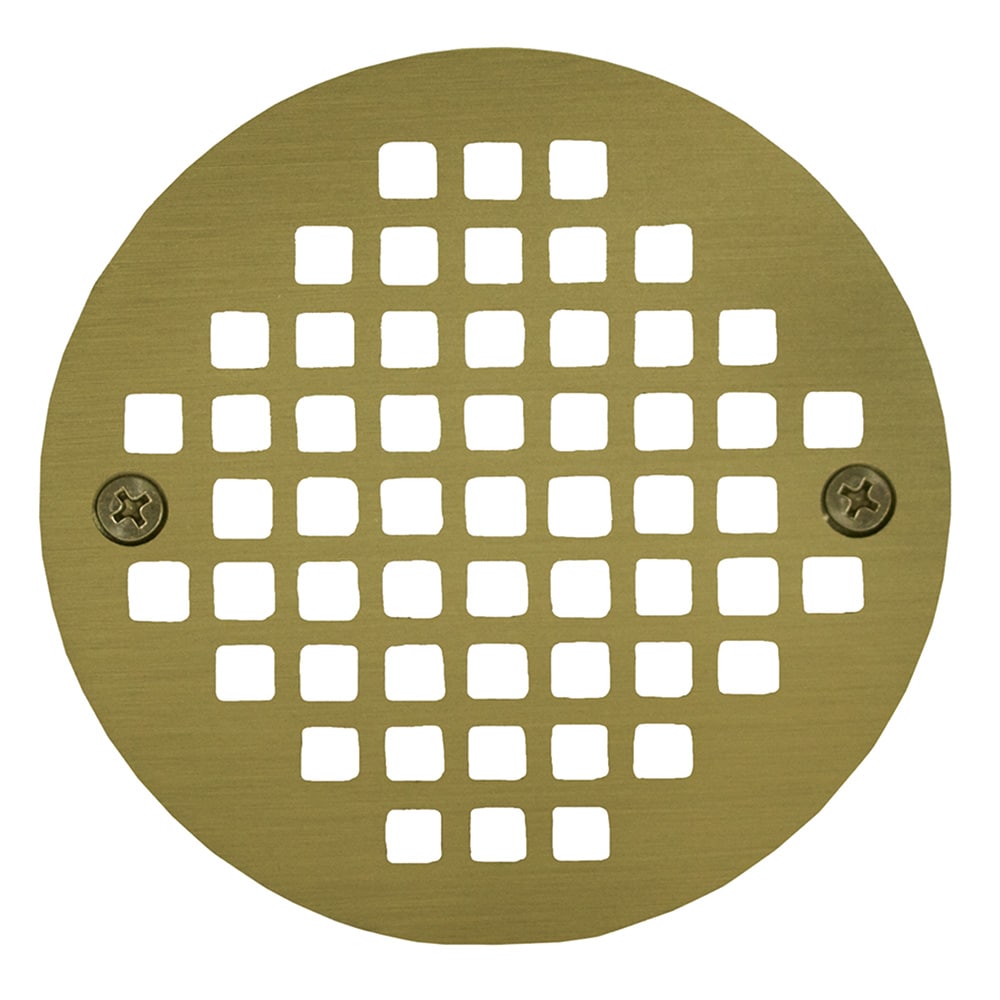

• Comes with a polished brass round metal strainer
• Constructed from heavy-duty gray PVC offering improved drainage

Product Highlights

This floor drain features a polished brass strainer and is designed with a reversible clamping ring for added flexibility.

Product Information

Standard Information

• Shape: Round
• Approved for Commercial Use: Yes

Technical Specifications

• Material: PVC
• Length: 8.5 inches
• Inlet Thread Type: Solvent weld
• Width: 8.5 inches
• Series Name: 3x4 Heavy Duty PVC with Plastic Spud 5-in Strainer
• Warranty: 1-year limited
• Grate Style: Square holes
• Strainer Material: Brass
