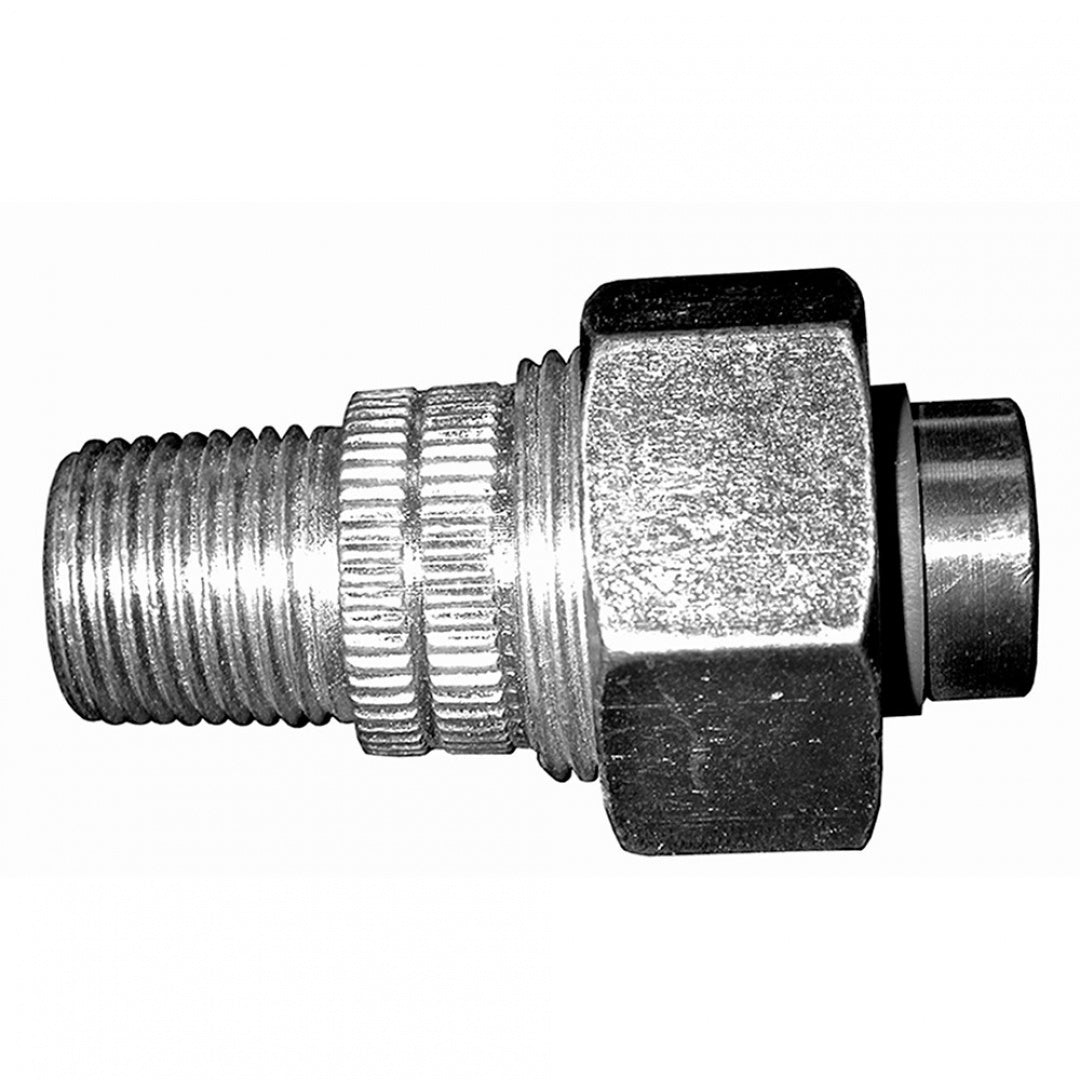

JONES STEPHENS D06005 1/2 MIP X 1/2 SWEAT DIELECTRIC UNION LF

Product Description

The JONES STEPHENS D06005 is a dielectric union designed for plumbing applications. This component features a half-inch Male Iron Pipe (MIP) thread fitting and a half-inch sweat connection. It is suitable for use in both residential and commercial environments.

• Prevents electrolysis or galvanic action between dissimilar metals.
• Constructed from zinc plated forged steel.
• Pressure rated at 250 PSI at a temperature of 180 degrees Fahrenheit.

Product Highlights

This dielectric union provides reliable connections in plumbing systems, enhancing durability and performance in diverse applications.

Product Information

Standard Information

• Manufacturer: JONES STEPHENS CORP
• Product Sell Qty: Each

Technical Specifications

• Size: 1/2 x 1/2 (7/8 OD)
• Material: Zinc plated forged steel
• Washer: EPDM
• Sleeve: ABS fiber
• Threads Standard: ANSI B2.1
• Solder Ends Standard: ANSI B16.19
• Pressure Rating: 250 PSI
• Temperature Rating: 180 degrees Fahrenheit
