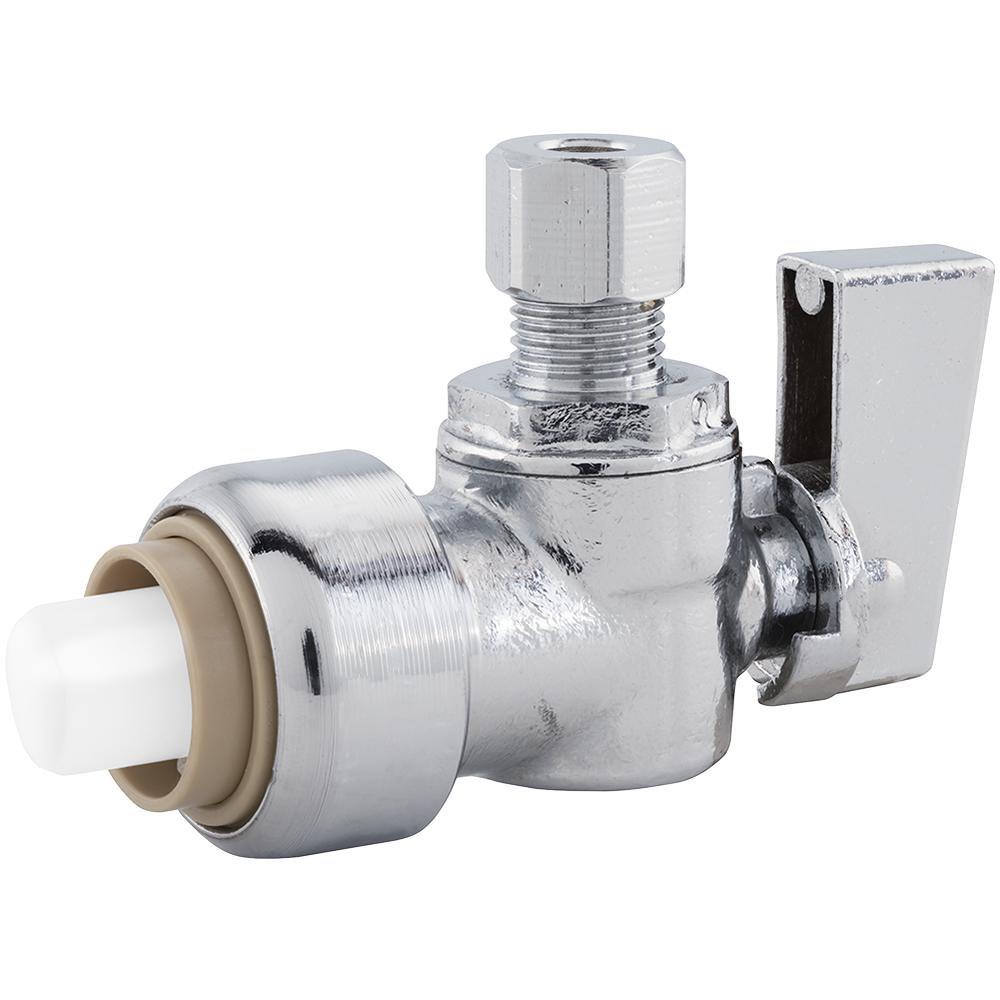

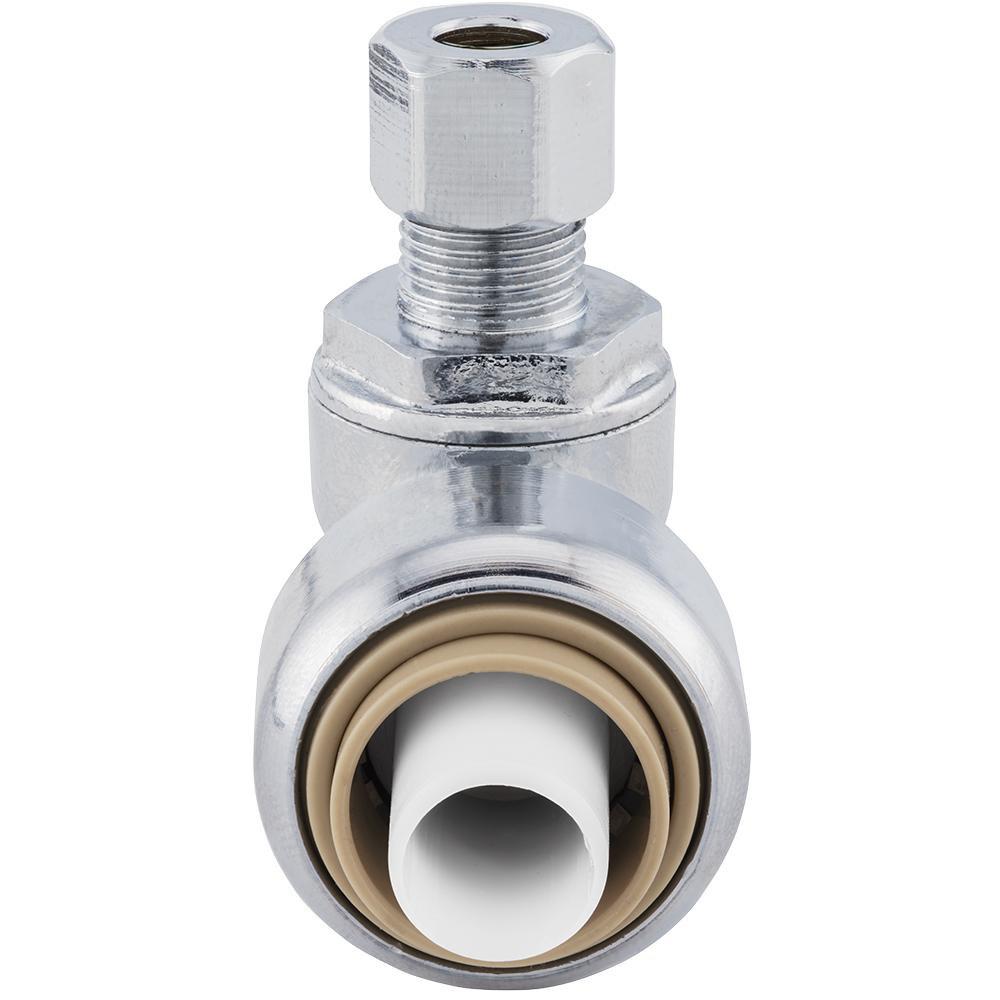

Jones Stephens C77474LF Plumbite 1/2 x 1/4 in. Push x Compression Angle Supply Stop Valve

Product Description

The Jones Stephens C77474LF is a reliable push x compression angle supply stop valve designed for easy installation without the need for soldering or tools. This valve is ideal for connecting copper, CPVC, PEX, or PE-RT tubing safely and securely.

• Durable stainless steel gripper ring ensures a strong connection.
• EPDM O-ring provides excellent sealing capabilities.
• Capable of handling a maximum temperature of one hundred eighty degrees Fahrenheit and a maximum pressure of two hundred PSI.

Product Highlights

This angle supply stop valve is perfect for plumbing applications, providing a heat-free joining method and the ability to be disassembled and reused with an appropriate tool.

Product Information

Standard Information

• Brand: Jones Stephens
• MPN: C77474LF

Technical Specifications

• Material: Stainless steel and EPDM
• Valves Type: Push x Compression Angle Stop Valve
• Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UPC, cUPC by IAPMO
• Lead Free: Yes
• Temperature Rating: Maximum one hundred eighty degrees Fahrenheit
• Pressure Rating: Maximum two hundred PSI
