Jomar Valve 105-203G S-501G Horizontal Swing Check Valve, 1/2 in, Solder, 125 lb

Product Description

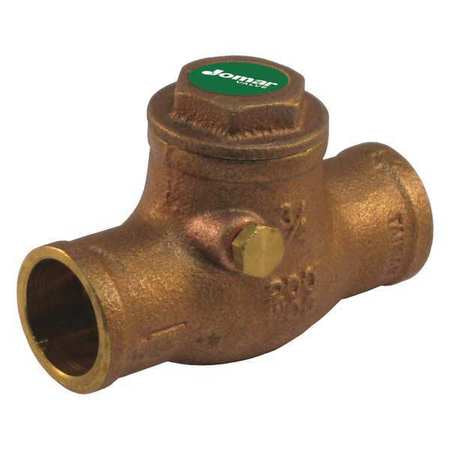

The Jomar Valve 105-203G is a horizontal swing check valve designed for applications requiring reliability. This valve features a solder joint end style and is rated for a pressure class of one hundred twenty-five pounds. The cast brass body ensures durability and long service life.

• Nominal size of one-half inch
• Low lead compliance for safety
• Actuated by a spring mechanism

Product Highlights

Ideal for both residential and commercial plumbing tasks, this valve prevents backflow effectively and ensures fluid control.

Product Information

Standard Information

• Manufacturer: Jomar Valve
• Model Number: 105-203G

Technical Specifications

• Type: Horizontal
• Series: S-501G
• Nominal Size: 1/2 inch
• Body Material: Cast Brass
• Trim Material: Forged Brass
• Pressure Class: 125 lb
• Inlet to Outlet Length: 2.52 inches
• Top to Inlet Center: 1.54 inches
• Actuator Type: Spring Assisted
• Low Lead Compliance: Yes
• Manufacturing Standards: ASME/ANSI B16.18, IAPMO Certified, NSF 372, UPC Listed
