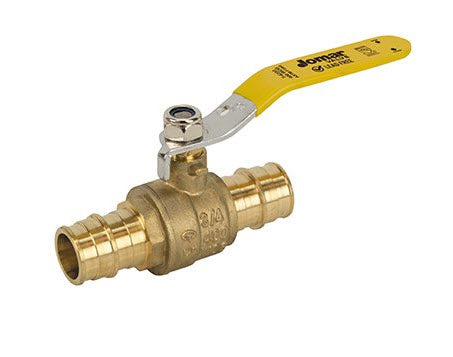

Jomar Valve 104-525PG 2-Piece Ball Valve With Handle 1 in Nominal PEX Replacement MPN

Product Description

The Jomar Valve 104-525PG is a two-piece ball valve designed for reliable use. This valve has a nominal size of one inch and features a PEX expansion end style. It is made from a brass body and includes a lever handle for easy operation.

• Brass construction for durability
• 400 psi pressure rating
• Standard port type for consistent flow

Product Highlights

This valve is suitable for water applications and meets various manufacturing standards. It is designed for domestic use and is certified for high-quality performance.

Product Information

Standard Information

• Brand: Jomar Valve
• Part #: R1112

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Brass
• Body Material: Brass
• Country of Origin: US
• Domestic/Import: Domestic
• End Style: PEX
• Finish: Chrome Plated
• Inlet to Outlet Length: 4.09 in
• Media: Water
• Mfg Standards/Approvals: ANSI/NSF Standard 61-G, ANSI/ASME B1.20.1, ASTM F1960, ANSI/NSF Standard 14, ISO 9002 Certified, UPC/IAPMO, U.S. Federal Public Law 111-380
• Nominal Size: 1 in
• Pack Quantity: 60 cs
• Port Type: Full
• Pressure Rating: 400 psi
• Series: T-1960NL
• Softgoods Material: PTFE Seat/EPDM Rubber Stem O-Ring/Anti-Friction Washer/NBR Rubber Waste Cap Gasket
• Top to Inlet Center: 1.97 in
• Trim Material: Brass Stem
• Warranty: 5/25 Years
