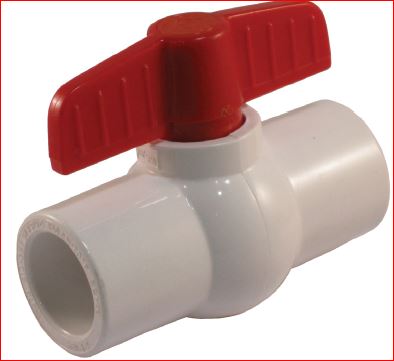

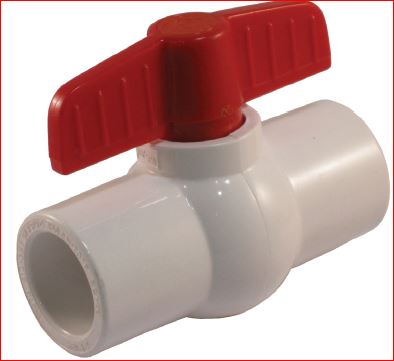

Jomar S701 1-1/2 Upvc Ball Valve 1-1/2 in Solvent

Product Description

The JOMAR S701 1-1/2 is a 1-1/2 inch large-port ball valve built for use in plumbing and fluid-handling systems where corrosion resistance and chemical compatibility are required. The valve body and ball are constructed from UPVC, making it well suited for applications where metal valves would degrade. It connects via solvent (CxC) joints and is rated at 150 psi WOG at 73 degrees F. The stem trim is EPDM/UPVC and softgoods are EPDM, supporting reliable sealing across compatible media. Licensed plumbers and pipefitters install this valve in Schedule 80 PVC piping systems where a full-bore, quarter-turn shutoff is needed.

This valve is intended for residential and light commercial plumbing, irrigation, chemical distribution, and water treatment applications. The large-port design minimizes flow restriction, making it appropriate for systems where pressure drop across the valve must be kept low. The solvent connection suits direct integration into SCH 80 UPVC piping runs. It carries NSF/ANSI 14, NSF 61 Annex G/61-8/372, and ASTM F1970 listings, which qualify it for potable water service where those certifications are required.

Key Features

• UPVC body and ball construction for corrosion resistance in chemical and water service
• Large-port design for minimal flow restriction and low pressure drop
• Solvent (CxC) end connections for direct integration into SCH 80 UPVC pipe
• EPDM softgoods and EPDM/UPVC stem trim for dependable sealing performance
• Rated 150 psi WOG at 73 degrees F
• NSF/ANSI 14, NSF 61 Annex G/61-8/372, and ASTM F1970 certified for potable water use

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1-1/2 inch Schedule 80 UPVC solvent-weld piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing codes. Depressurize and drain the piping system fully before cutting into any existing line. Solvent-weld connections require proper primer and cement rated for UPVC; allow full cure time before returning the system to service. Do not exceed the rated pressure or temperature limits of the valve or the adjoining piping system.

Technical Specifications

• Body Material: UPVC
• Ball Material: UPVC
• Stem Trim: EPDM/UPVC
• Softgoods: EPDM
• Nominal Size: 1-1/2 inches
• End Connection: Solvent (CxC)
• Port: Large Port
• Pressure Rating: 150 psi WOG
• Temperature Rating: 73 degrees F
• Inlet to Outlet Length: 5.12 inches
• Standards and Approvals: ASTM F1970, NSF/ANSI 14, NSF 61 Annex G/61-8/372

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: S701 1-1/2
