Product Description

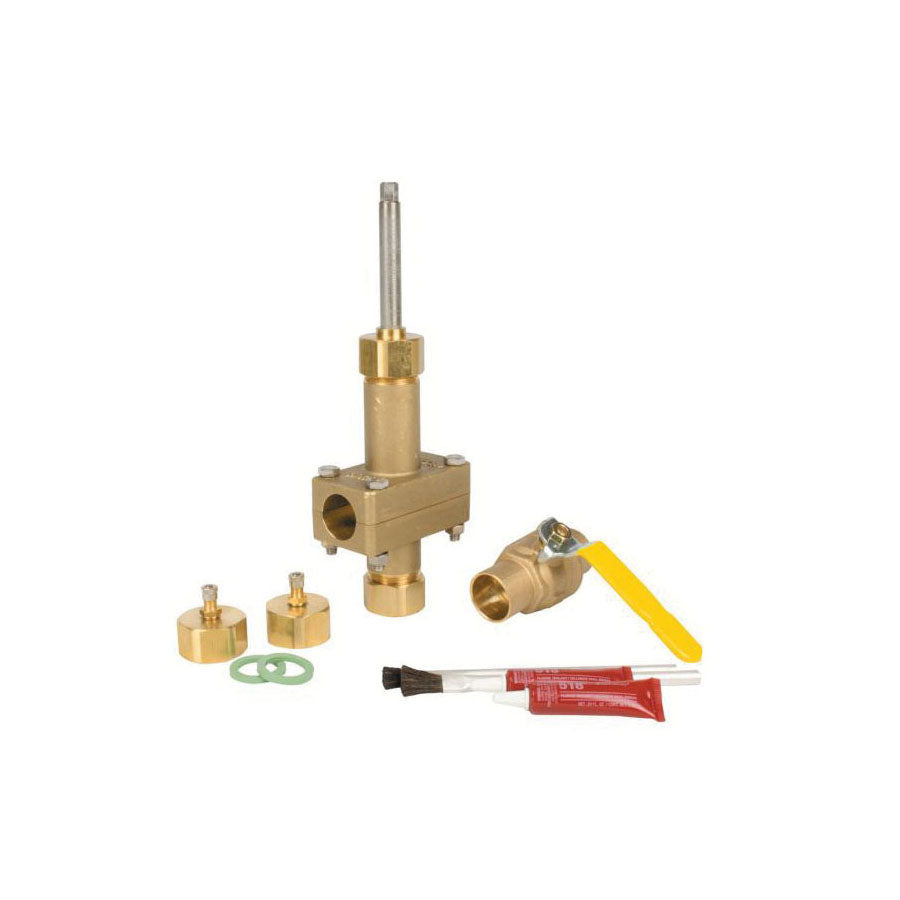

The Jomar 800-103ADDG Lead Free Add-A-Valve is an emergency shut-off device designed for piping systems. This valve measures one-half inch in nominal size and operates at a pressure rating of two hundred fifty psi. It has a full port design that ensures efficient flow management. The valve's inlet to outlet length is two point ninety-nine inches, and it features a height of six point sixty-nine inches. This product is compliant with lead-free standards and is suitable for applications requiring safe drinking water.
- Eliminates facility shutdowns
- Bottom cleanout cap serves as line tap
- IAPMO Certified
Product Highlights
This valve's robust construction ensures durability and reliability in various piping applications. The forged brass body and hardened steel trim provide strength while maintaining lead-free compliance.
Product Information
Standard Information
-
Manufacturer: Jomar
-
Nominal Size: 1/2 in
Technical Specifications
-
Body Material: Forged Brass
-
Dimensions: 6.69 in H
-
Inlet to Outlet Length: 2.99 in
-
Pressure Rating: 250 psi
-
Softgoods Material: FKM Gasket, O-Ring
-
Temperature Rating: 220 deg F
-
Port Type: Full
-
Top to Inlet Center: 5.08 in
-
Trim Material: Hardened Steel
