Jomar 600-207 Full Port, 2 Piece, Flanged Connection, Class 150, Carbon Steel, Stainless

Product Description

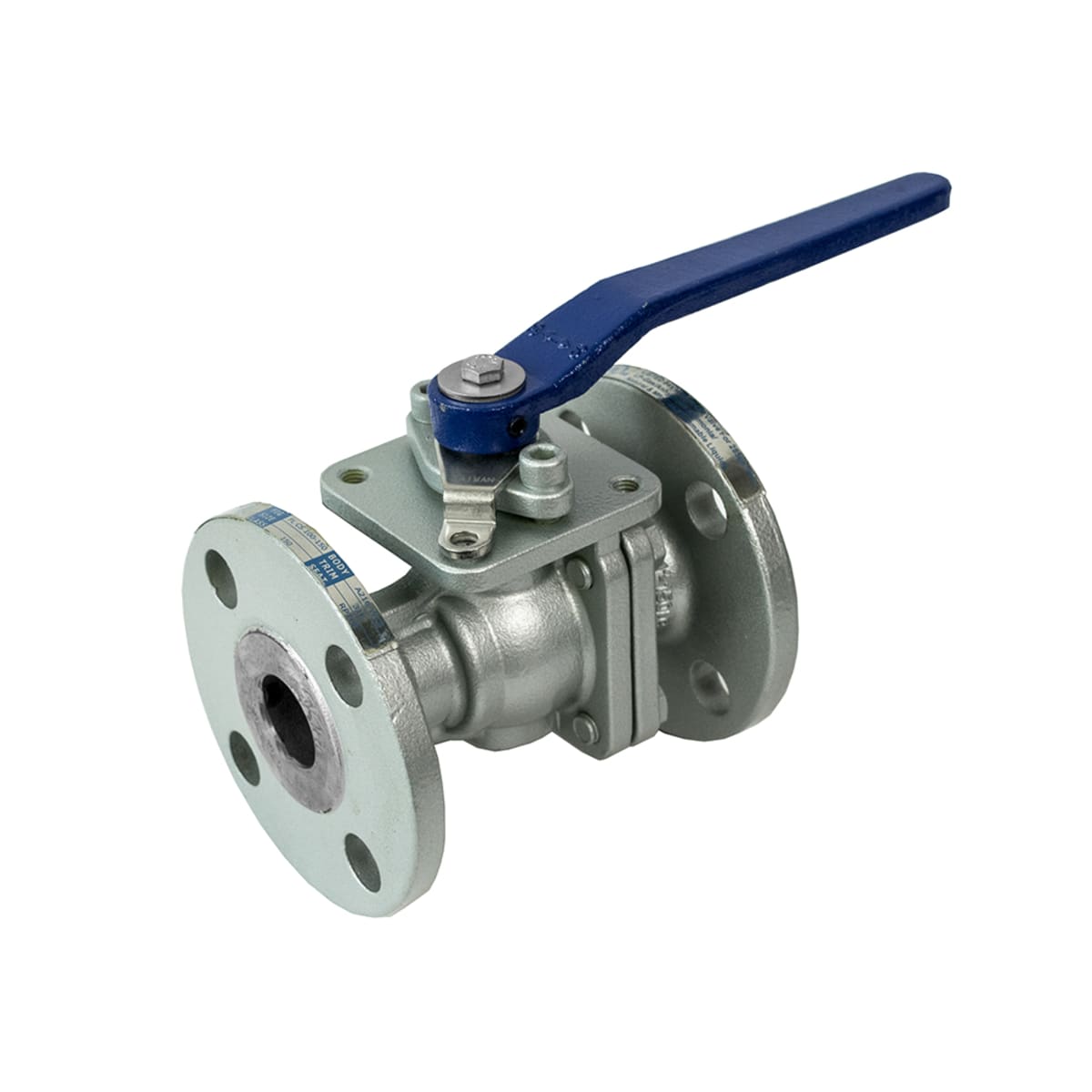

The Jomar 600-207 is a full port, two-piece ball valve designed for flanged connections. It is constructed with a carbon steel body and features a stainless steel ball for enhanced durability. This valve operates under a maximum pressure of three hundred psi WOG, making it suitable for various plumbing and HVAC applications.

• Ball material: stainless steel
• Inlet to outlet length: six and a half inches
• Pressure class: one hundred fifty lb

Product Highlights

This valve ensures secure connections and effective flow control in industrial and commercial pipelines.

Product Information

Standard Information

• Manufacturer: JOMAR
• Nominal size: one and a half inches

Technical Specifications

• Body material: WCB carbon steel
• End style: flanged
• Port type: full
• Pressure rating: three hundred psi WOG
• Softgoods material: graphite/PTFE
• Trim material: 304 stainless steel stem and RPTFE seat
• Type: two-piece
