Jomar 500-803 Oxygen Cleaned for Medical Gas, 3 Piece 4 Bolt, Copper Stub Connection, 60

Product Description

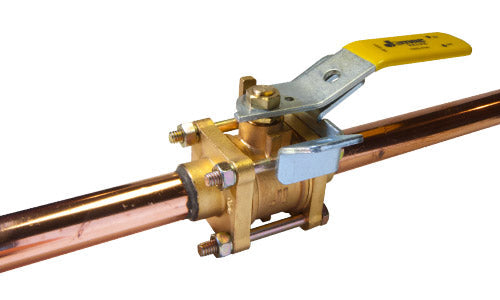

The Jomar 500-803 is an oxygen cleaned medical gas ball valve designed for high efficiency and safety in medical applications. This valve features a three-piece four-bolt construction and a copper stub connection. Its nominal size is one half inch, and it operates at a pressure rating of six hundred psi WOG. The valve includes a latch-lock handle actuator, ensuring secure operation with reliability.

• Designed for oxygen cleaning, suitable for medical gas applications.
• Constructed with chrome plated brass for durability.
• Standard latch-lock handle for easy control.

Product Highlights

This product is essential in medical gas supply systems. The copper stub connection supports secure attachment, making it ideal for various plumbing setups.

Product Information

Standard Information

• Brand: Jomar
• MPN: 500-803

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: C Stub
• Inlet to Outlet Length: 2.64 inches
• Nominal Size: 1/2 inch
• Pressure Rating: 600 psi WOG
• Softgoods Material: RPTFE/FKM
• Top to Inlet Center: 1.81 inches
• Trim Material: Brass Stem and RPTFE Seat
• Type: 3-Piece 4-Bolt
• Compliance Standards: MSS SP-110, NFPA-99C
