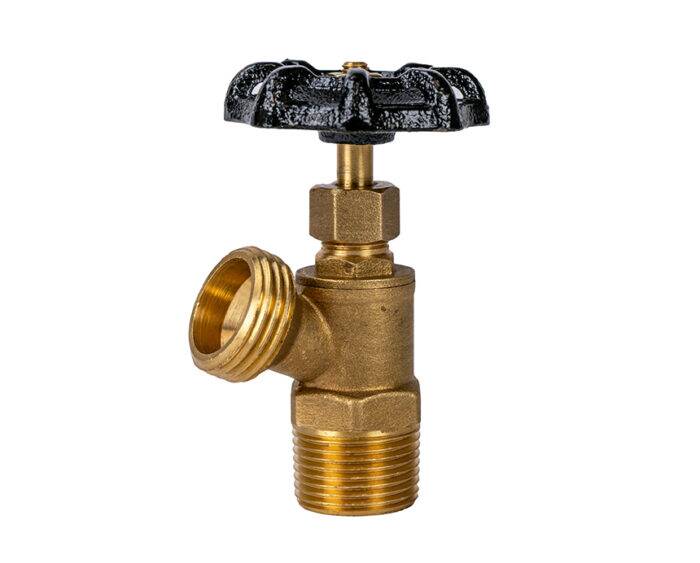

Jomar 201-003 1/2 MPT Boiler Drain

Product Description

The JOMAR 201-003 is a boiler drain valve with a 1/2 IN nominal size and MNPT connection type. Constructed with a cast brass body and a cast iron handle, this valve is designed for residential and commercial applications. It features a 3/4″ hose thread outlet and is pressure rated to 150 PSI (WOG).

• 1/2 IN Nominal Size
• MNPT Connection Type
• 150 PSI (WOG) Pressure Rating
• Cast Brass Body

Product Highlights

This boiler drain valve is suitable for residential and commercial applications, featuring a durable cast brass body and a convenient 3/4" hose thread outlet.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 201-003

Technical Specifications

• Nominal Size: 1/2 IN
• Connection Type: MNPT
• Pressure Rating: 150 PSI (WOG)
• Body Material: Cast Brass
• Handle Material: Cast Iron
• Stem Material: Brass
• Packing Material: Graphite Gland
• Seat: Buna-N
• Industry Standards: ISO 9001, NSF Certified
• Lead Free: No
• Other Physical Dimension: 3.59 IN Height, 2.13 IN Handwheel Diameter
• Part No.: 201-003
• Certifications: ANSI B1.20.1, ANSI B1.20.7
• Item Number: 201-003
• Brand: Jomar
• Connection: Threaded Male Connection
• Material: Regular Brass
