Jomar 160-104 3/4 T100UE BRZ FP SUE THRD Ball Valve

Product Description

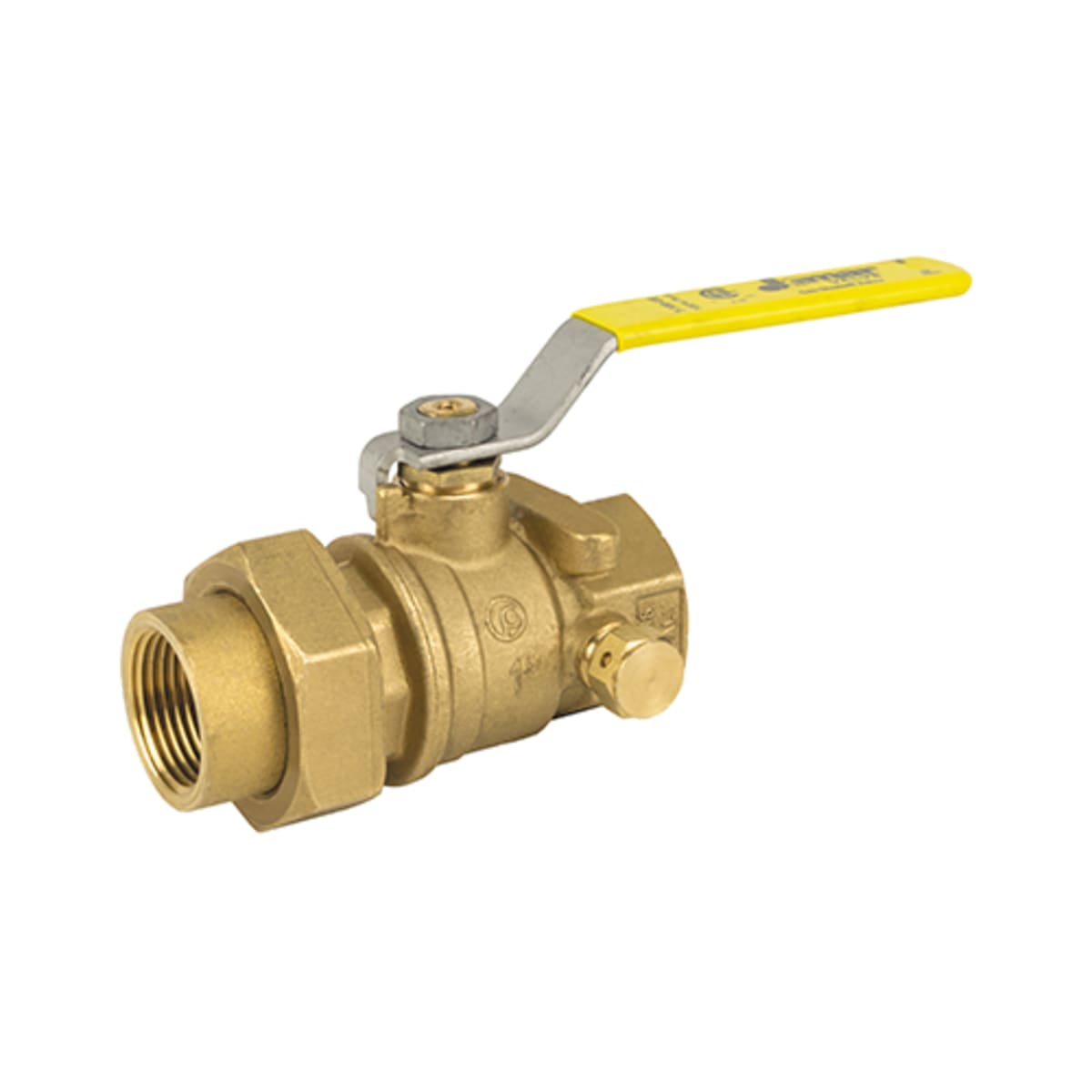

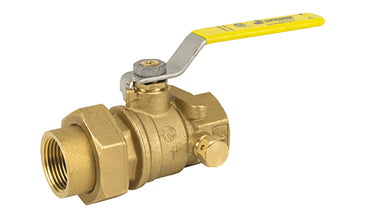

The JOMAR 160-104 is a 2-piece full-port ball valve with a 3/4 inch nominal size and FNPT union x FNPT connection type. It has a pressure rating of 600 PSI (WOG) and 150 PSI (SWP). The valve features a brass body, tee handle operator, and aluminum handle.

• 2-Piece Full-Port Ball Valve
• Tee Handle Operator Type
• FNPT Union X FNPT connection type

Product Highlights

This Jomar ball valve is suitable for various applications requiring reliable flow control. It is C/US CSA Certified and meets MSS-SP-110 industry standards.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 160-104
• Country of Origin: Italy

Technical Specifications

• Series/Model: Model T-100-UE
• Nominal Size: 3/4 IN
• Connection Type: FNPT Union X FNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Material: Aluminum
• Stem Material: Brass
• Trim Material: Brass Stem and Hostaflon® TFM 1600 Seat
• Packing Material: TFM 1600 Hostaflon®
• Gland: Brass
• Seat Material: TFM 1600 Hostaflon®
• Seal Material: Teflon
• Body And Ball Material Specification: CW617N
• Stem And Gland Material Specification: CW614N
• Finish/Color: Chrome Plated, Red Handle
• Industry Standards: C/US CSA Certified, MSS-SP-110
• Width: 3.52 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1.88 IN
• Handle Length: 3.74 IN
• Flow Co-Efficient (Cv): 34.8
• Domestic/Import: Import
• End Style: FNPT x Union FNPT
• Inlet to Outlet Length: 3.52 in
• Port Type: Full
• Softgoods Material: Hostaflon® TFM/FKM
• Top to Inlet Center: 1.88 in
• Type: 2-Piece
• Manufacturer: JOMAR
• Material: Brass
• Connection: Threaded
• Configuration: 2 Piece, Single Union End
• Operator Type: Tee Handle
• Item Number: 160-104
• Brand: Jomar
• Family: T-100UE
• Piece: 2 Piece
• Port: Full Port
