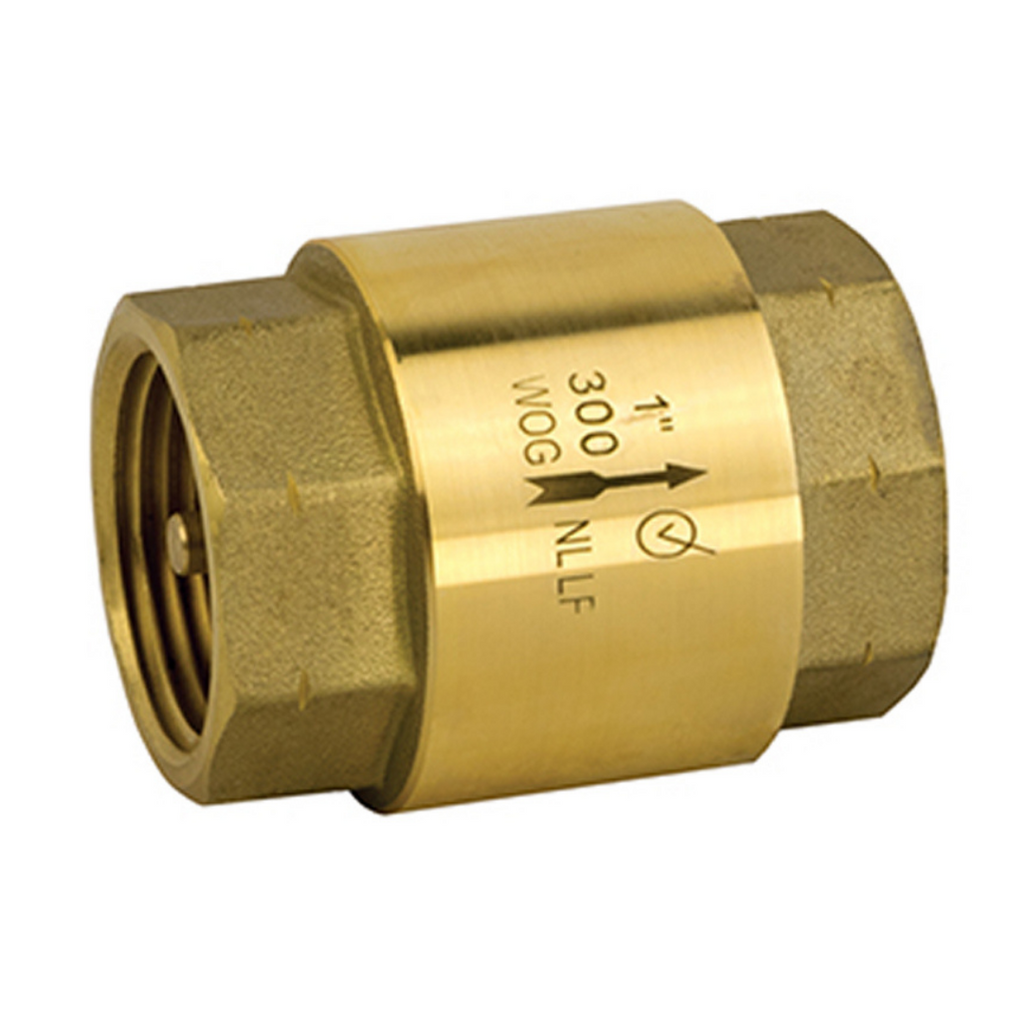

Jomar 105-604G Inline Check Valve, Threaded Connection, 300 WOG, Class 150

Product Description

Jomar 105-604G is a reliable inline check valve designed for use in your piping systems. This valve features a threaded connection and can handle pressures of up to 300 WOG with a Class 150 rating. It is built from lead-free brass and comes equipped with a PTFE seal for a secure fit.

• Spring assisted actuator for improved performance
• Can be installed in any orientation
• Low lead compliance with less than 0.25% lead in contact surface

Product Highlights

Use the Jomar 105-604G in various plumbing systems for efficient flow management. Its sturdy construction and versatile application make it suitable for both residential and commercial settings.

Product Information

Standard Information

• Manufacturer: JOMAR
• Category: Piping & Fittings

Technical Specifications

• Actuator Type: Spring Assisted
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 1.54 inches
• Low Lead Compliance: Yes
• Nominal Size: 3/4 inches
• Pressure Class: 150 lb
• Series: T-521G
• Softgoods Material: PTFE Seal
• Temperature Rating: 250 degrees F
• Trim Material: PTFE
