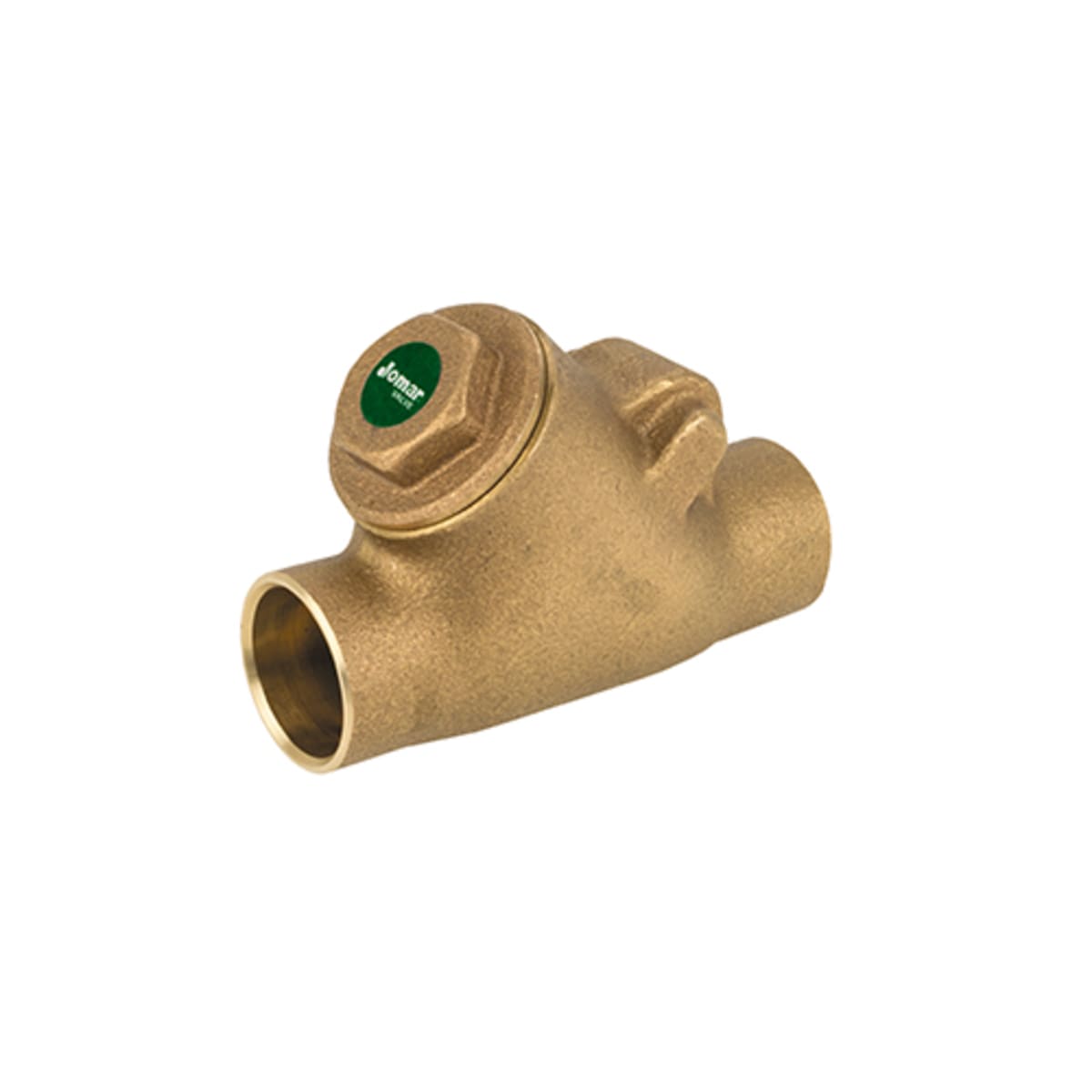

JOMAR 105-408G Y-Pattern Swing Check Valve Class 150 300 WOG

Product Description

The JOMAR 105-408G Y-Pattern Swing Check Valve is designed for solder connections and belongs to Class 150, suitable for handling up to 300 WOG. This valve is part of the S-511G series and features a bronze body with brass and PTFE trim.

• Two-inch nominal size for versatile applications.
• Spring actuator provides reliable functionality.
• Low lead compliance for safe use.

Product Highlights

This swing check valve can be installed in both vertical and horizontal positions, making it adaptable for various pipeline configurations.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: Y-Pattern

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• End Style: Solder Joint
• Inlet to Outlet Length: 6.69 inches
• Low Lead Compliance: Yes
• Nominal Size: 2 inches
• Pressure Class: 150 lb
• Series: S-511G
• Top to Inlet Center: 3.7 inches
• Trim Material: Brass/PTFE
